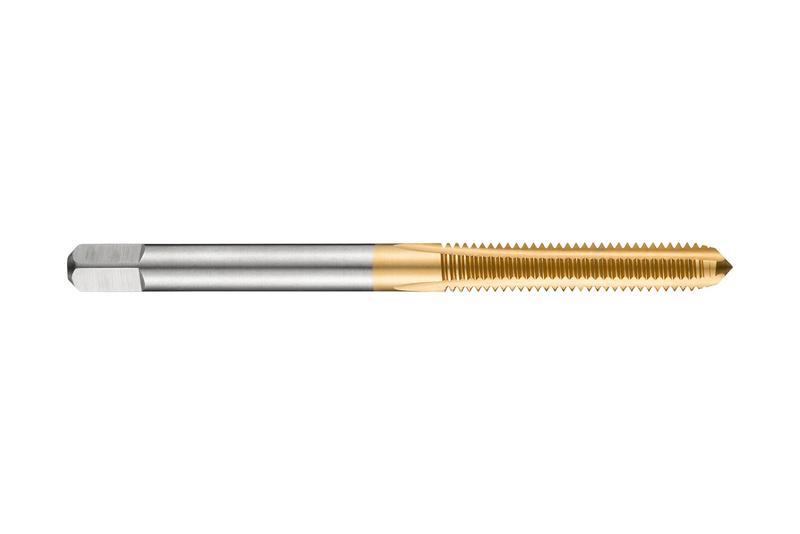

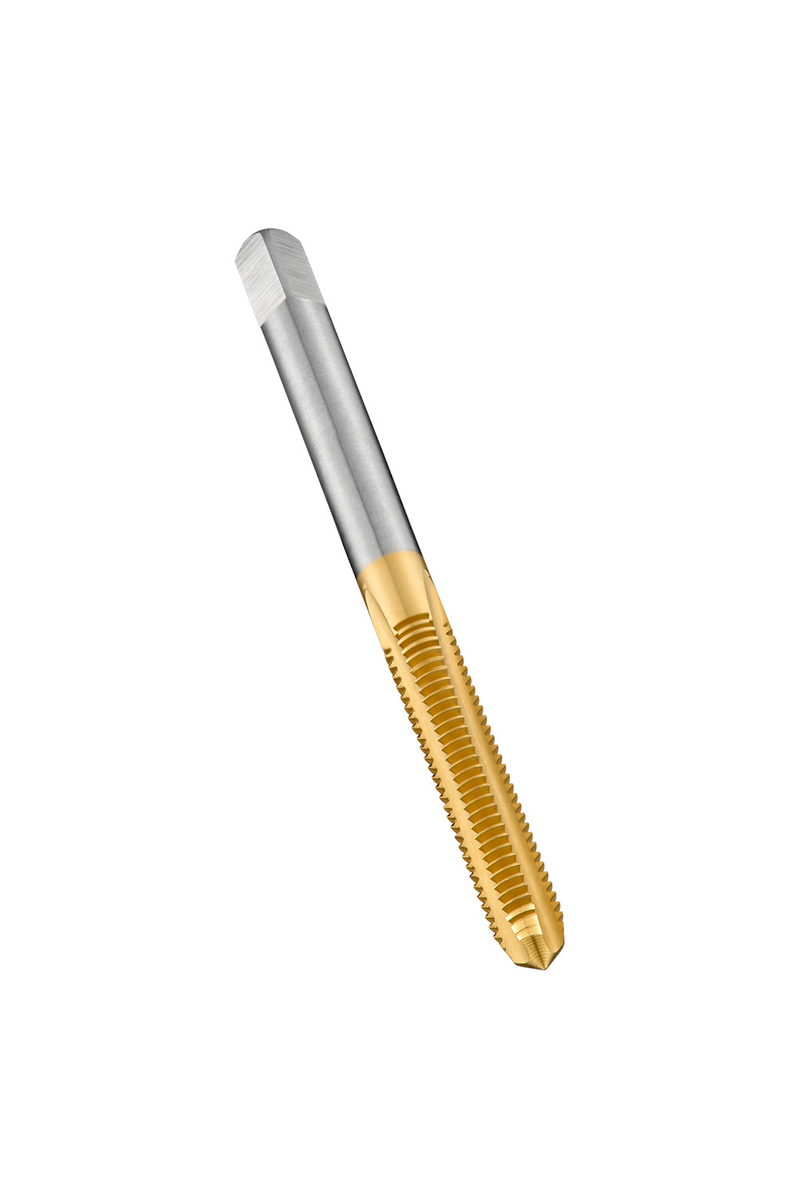

Taraud à main à coupe droite NO3 avec entrée courte de 2-3 filets, pour filetage ISO-Métrique M6 au pas de 1,00 mm et classe de tolérance 6H, dimensions conformes à la norme ISO 529 avec queue de 6,3 mm et carré d'entraînement de 5,0 mm, en HSS avec revêtement TiN pour le taraudage de trous traversants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage et les fontes

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E504M6NO3
GradeTiN
Product Number5976860
Product FamilyE504

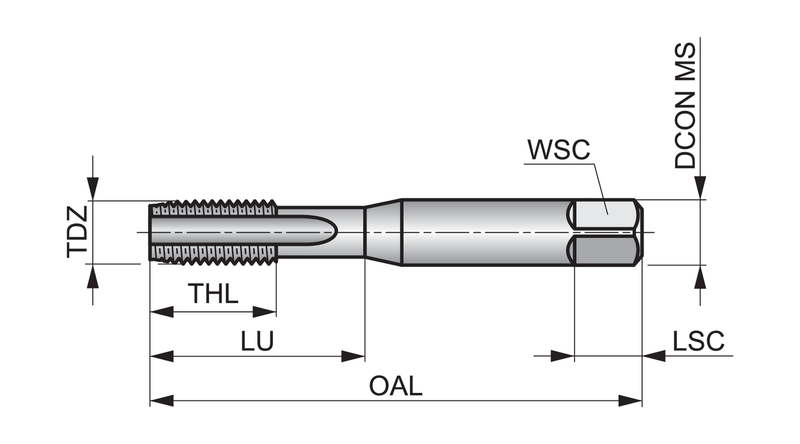

Dimensions
Overall Length — in (OAL)2.5984"
Overall Length — mm (OAL)66.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)1.0236"
Usable Length — mm (LU)26.0 mm
Connection Dia. — in (DCON)0.248"
Connection Dia. — mm (DCON)6.3 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)6
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)1.0 mm
Thread Pitch — in (TP)0.0394"
Tool Information
ShankQueue cylindrique avec carré d'entraînement
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number122518
EAN7320760122518
File Type Download
E504M6NO3 — Line Drawing PDF Download
