E500M36NO1
E500M36NO1

E500M36NO1

UGC DOR5976923
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$486.29 CAD - $486.29 CAD
$486.29 CAD
$486.29 CAD - $486.29 CAD
$486.29 CAD

Vendu en lots de : 1

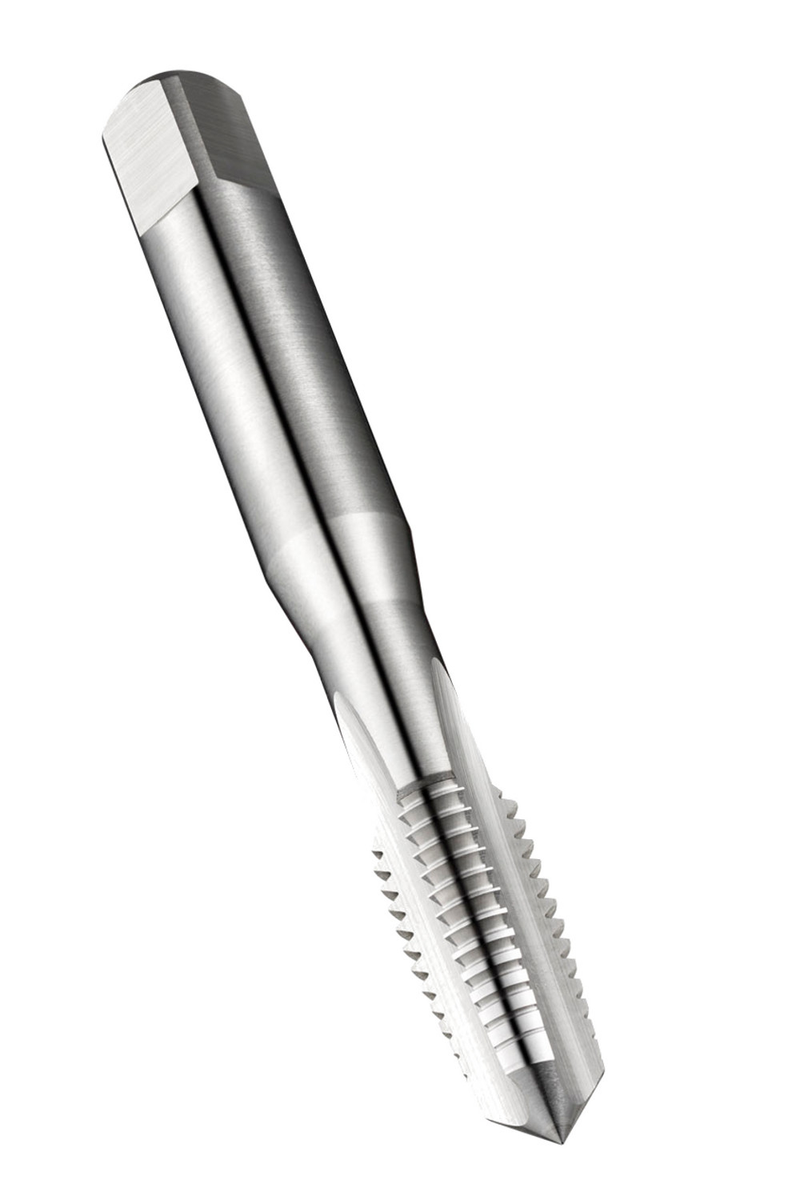

Taraud à main à coupe droite NO1 avec entrée conique 6-8xP, pour filetage ISO-métrique M36 au pas de 4,00 mm et de classe de tolérance 6H, dimensions selon la norme ISO 529 avec queue de 25,0 mm et carré d'entraînement de 20,0 mm, HSS avec finition brillante pour le filetage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers à usinage facile et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E500M36NO1
GradeLumineux
Product Number5976923
Product FamilyE500
Dimensions
Overall Length — in (OAL)6.378"
Overall Length — mm (OAL)162.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.9843"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)36
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)4.0 mm
Thread Pitch — in (TP)0.1575"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number154335
EAN7320760154335
File Type Download
E500M36NO1 — Line Drawing PDF Download
