E500M1.4NO2
E500M1.4NO2

E500M1.4NO2

UGC DOR5976983
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$67.66 CAD - $67.66 CAD
$67.66 CAD
$67.66 CAD - $67.66 CAD
$67.66 CAD

Vendu en lots de : 1

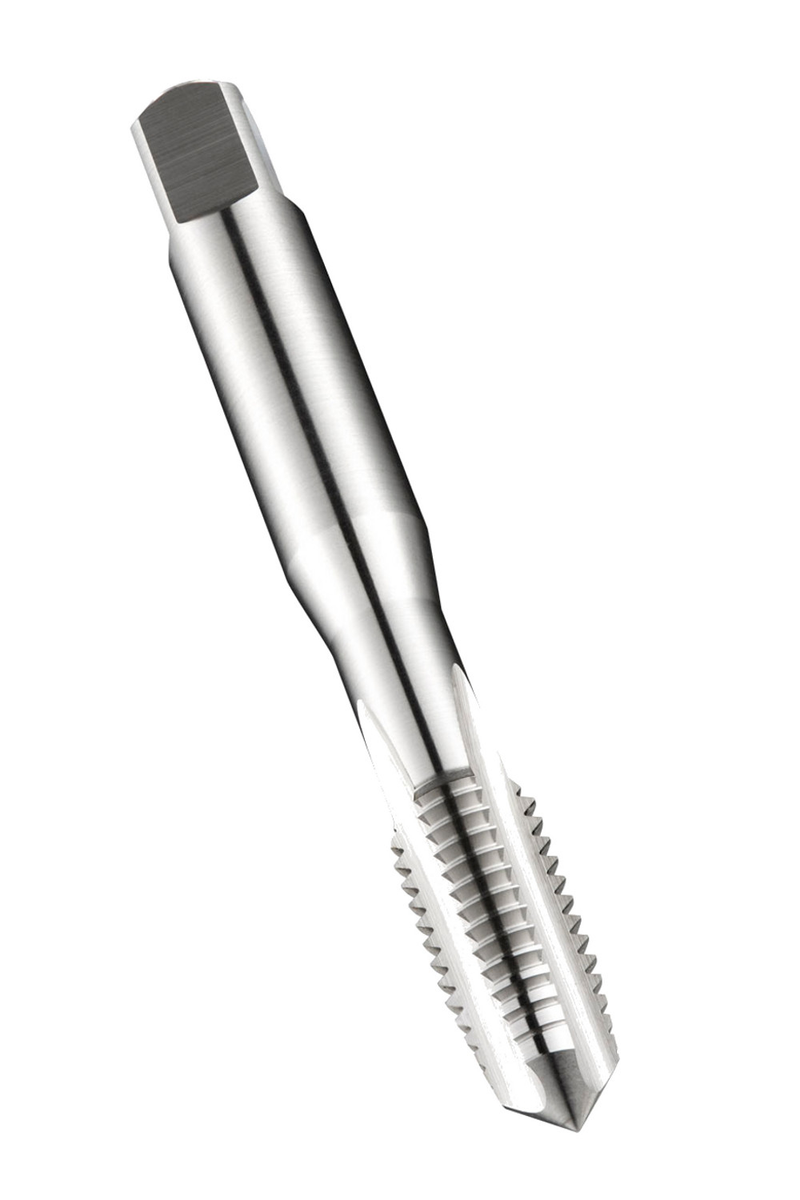

Taraud à main à coupe droite NO2, entrée 4-6xP, pour filetage ISO-Métrique M1.4 au pas de 0.30 mm et tolérance 6H, dimensions selon norme ISO 529 avec queue de 2.5mm et carré d'entraînement de 2.0mm, en HSS brillant pour taraudage de trous débouchants ou borgnes jusqu'à 1.5xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E500M1.4NON2
GradeLumineux
Product Number5976983
Product FamilyE500
Dimensions
Overall Length — in (OAL)1.5748"
Overall Length — mm (OAL)40.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)0.2362"
Usable Length — mm (LU)6.0 mm
Connection Dia. — in (DCON)0.0984"
Connection Dia. — mm (DCON)2.5 mm
Number of Flutes (NOF)2
Threading
Thread Diameter Size (TDZ)1.4
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)0.3 mm
Thread Pitch — in (TP)0.0118"
Tool Information
ShankTige cylindrique à carré d'entraînement
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number160206
EAN7320760160206
File Type Download
E500M1.4NO2 — Line Drawing PDF Download
