E500M1.7NO2
E500M1.7NO2

E500M1.7NO2

UGC DOR5976994
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$46.26 CAD - $46.26 CAD
$46.26 CAD
$46.26 CAD - $46.26 CAD
$46.26 CAD

Vendu en lots de : 1

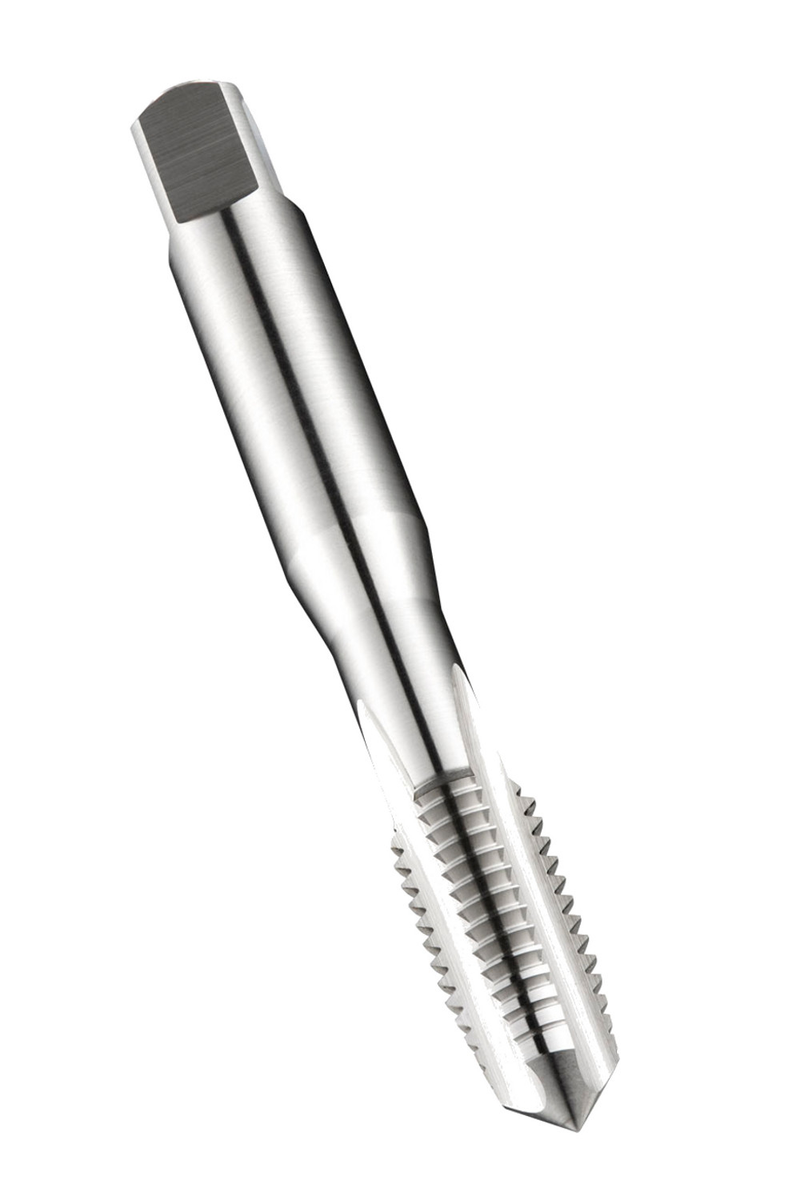

Taraud à main à coupe droite NO2, 2ème chanfrein 4-6xP, pour filet métrique ISO M1.7 avec un pas de 0,35 mm et une tolérance 6H, dimensions selon la norme ISO 529 avec queue de 2,5 mm et carré d'entraînement de 2,0 mm, en HSS finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI)E500M1,7NO2
Product Name (ISO)E500M1.7NO2
GradeLumineux
Product Number5976994
Product FamilyE500

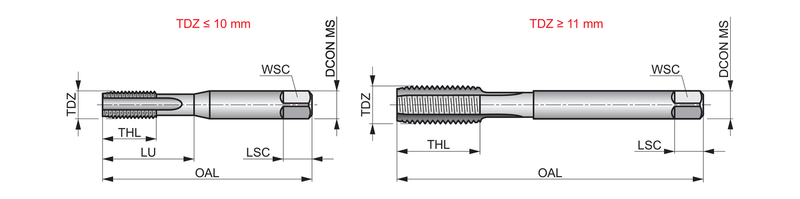

Dimensions
Overall Length — in (OAL)1.6142"
Overall Length — mm (OAL)41.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)0.315"
Usable Length — mm (LU)8.0 mm
Connection Dia. — in (DCON)0.0984"
Connection Dia. — mm (DCON)2.5 mm
Number of Flutes (NOF)2
Threading
Thread Diameter Size (TDZ)1.7
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)0.35 mm
Thread Pitch — in (TP)0.0138"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number93924
EAN7320760093924
File Type Download
E500M1.7NO2 — Line Drawing PDF Download
