E500M1.7NON6
E500M1.7NON6

E500M1.7NON6

UGC DOR5977001
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$139.01 CAD - $139.01 CAD
$139.01 CAD
$139.01 CAD - $139.01 CAD
$139.01 CAD

Vendu en lots de : 1

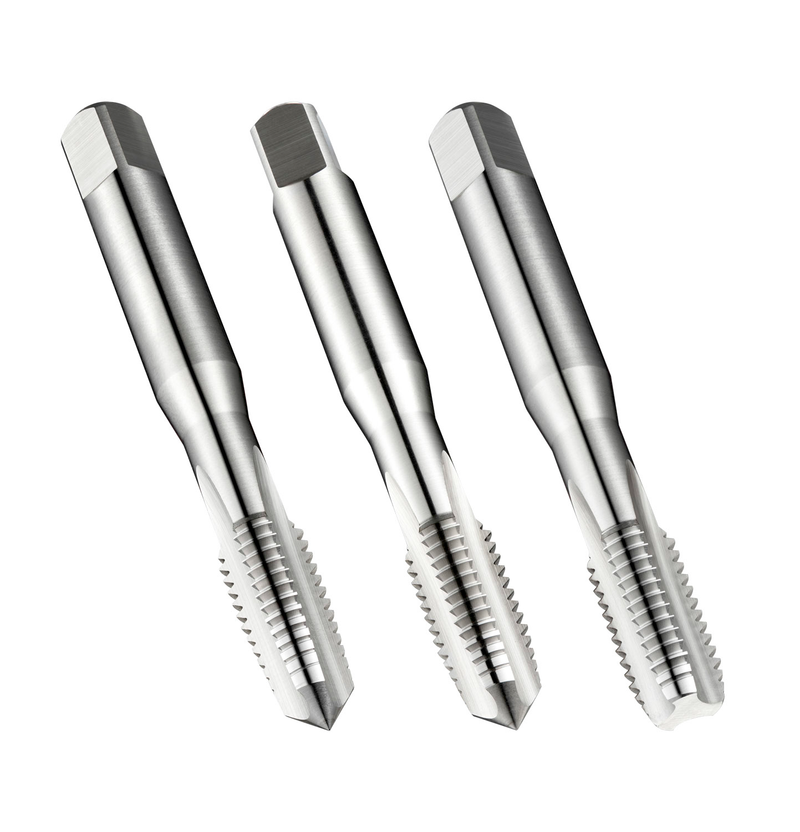

Jeu de tarauds à main à coupe droite NO6 pour filetage ISO-Métrique M1.7 au pas de 0.35 mm et de classe de tolérance 6H, comprenant 1 taraud ébaucheur 6-8 filets, 1 taraud intermédiaire 4-6 filets et 1 taraud finisseur 2-3 filets, dimensions selon la norme ISO 529 avec une queue de 2.5mm et un carré d'entraînement de 2.0mm, en HSS avec finition brillante pour le filetage de trous débouchants ou borgnes jusqu'à 1.5xD dans l'acier de décolletage et l'acier au carbone non allié

For more information about this product, click here

Identification
Ordering Code (ANSI)E500M1.7NO6
Product Name (ISO)E500M1.7NON6
GradeLumineux
Product Number5977001
Product FamilyE500
Dimensions
Overall Length — in (OAL)1.6142"
Overall Length — mm (OAL)41.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)0.315"
Usable Length — mm (LU)8.0 mm
Connection Dia. — in (DCON)0.0984"
Connection Dia. — mm (DCON)2.5 mm
Number of Flutes (NOF)2
Threading
Thread Diameter Size (TDZ)1.7
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)0.35 mm
Thread Pitch — in (TP)0.0138"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number154991
EAN7320760154991
File Type Download
E500M1.7NON6 — Line Drawing PDF Download
