E513M3,5X,35NO3
E513M3,5X,35NO3
E513M3,5X,35NO3

E513M3,5X,35NO3

UGC DOR5977025
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$74.53 CAD - $74.53 CAD
$74.53 CAD
$74.53 CAD - $74.53 CAD
$74.53 CAD

Vendu en lots de : 1

Taraud à main à coupe droite NO3 avec entrée courte (2-3 filets), pour filetage ISO métrique fin M3,5 au pas de 0,35 mm et de tolérance 6H, dimensions conformes à la norme ISO 529 avec queue de 3,15 mm et carré d'entraînement de 2,5 mm, en HSS avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers à usinage facile et aciers au carbone non alliés, le cuivre et les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E513M3.5X.35NO3
GradeLumineux
Product Number5977025
Product FamilyE513

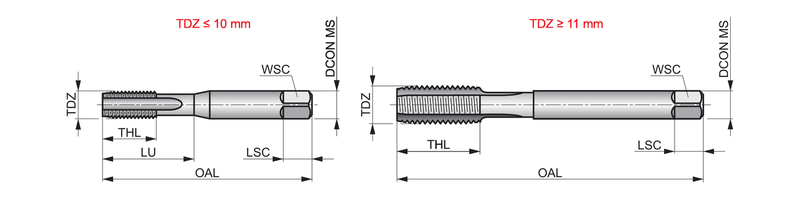

Dimensions
Overall Length — in (OAL)1.8898"
Overall Length — mm (OAL)48.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)0.4921"
Usable Length — mm (LU)12.5 mm
Connection Dia. — in (DCON)0.124"
Connection Dia. — mm (DCON)3.15 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)3.5
Thread Form (THFT)MF - Filetage métrique fin
Thread Pitch — mm (TP)0.35 mm
Thread Pitch — in (TP)0.0138"
Tool Information
ShankQueue cylindrique à carré d'entraînement
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number343111
EAN7320760343111
File Type Download
E513M3,5X,35NO3 — Line Drawing PDF Download
