E500M1NO3
E500M1NO3

E500M1NO3

UGC DOR5977035
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$100.96 CAD - $100.96 CAD
$100.96 CAD
$100.96 CAD - $100.96 CAD
$100.96 CAD

Vendu en lots de : 1

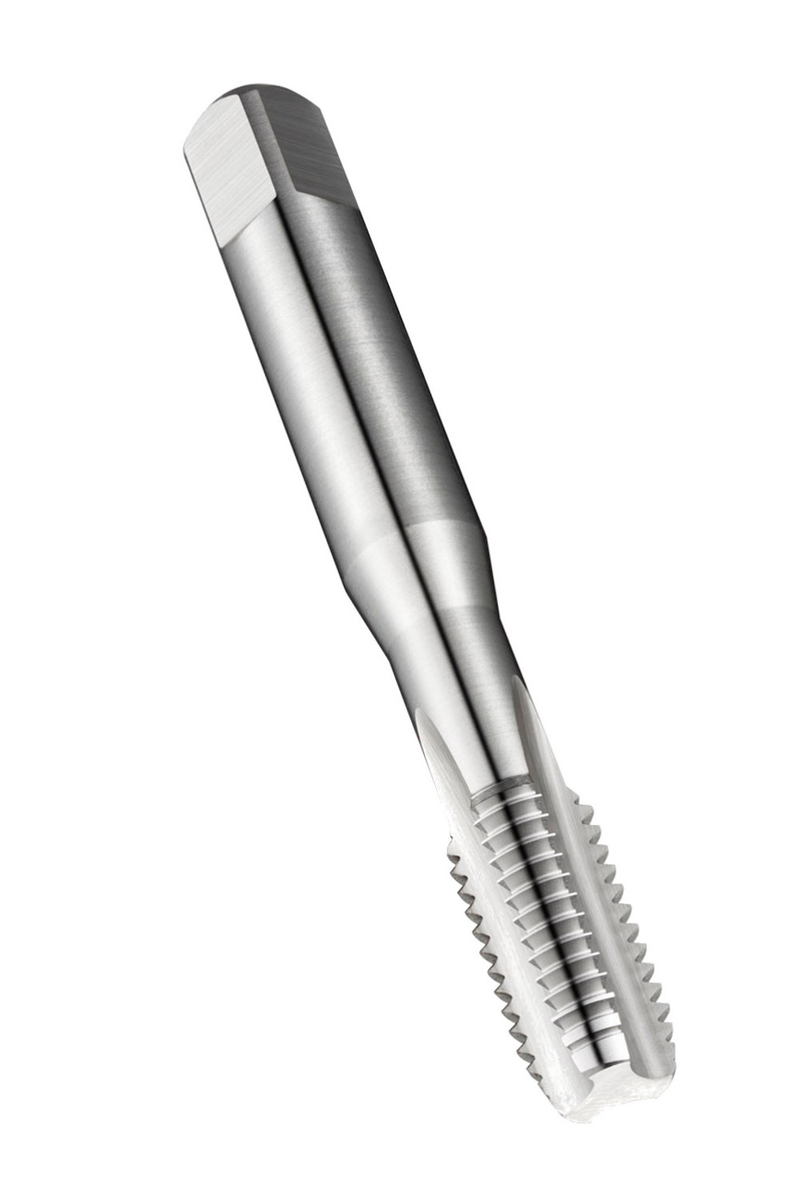

Taraud à main à coupe droite NO3 avec entrée courte (2-3 filets), pour filetage ISO métrique M1 au pas de 0,25 mm et de classe de tolérance 6H, dimensions conformes à la norme ISO 529 avec queue de 2,5 mm et carré d'entraînement de 2,0 mm, en HSS finition brillante pour le filetage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E500M1NO3
GradeLumineux
Product Number5977035
Product FamilyE500

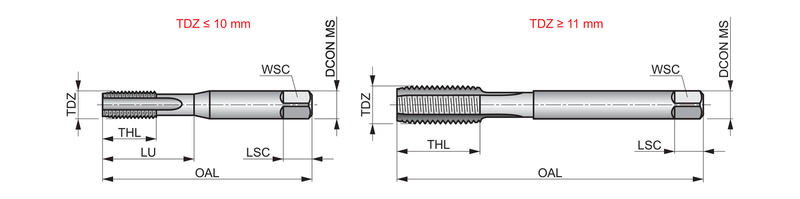

Dimensions
Overall Length — in (OAL)1.4961"
Overall Length — mm (OAL)38.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)0.1772"
Usable Length — mm (LU)4.5 mm
Connection Dia. — in (DCON)0.0984"
Connection Dia. — mm (DCON)2.5 mm
Number of Flutes (NOF)2
Threading
Thread Diameter Size (TDZ)1
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)0.25 mm
Thread Pitch — in (TP)0.0098"
Tool Information
ShankQueue cylindrique avec carré d'entraînement
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number122464
EAN7320760122464
File Type Download
E500M1NO3 — Line Drawing PDF Download
