E513M30X2.0NO2
E513M30X2.0NO2
E513M30X2.0NO2

E513M30X2.0NO2

UGC DOR5977053
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$239.44 CAD - $239.44 CAD
$239.44 CAD
$239.44 CAD - $239.44 CAD
$239.44 CAD

Vendu en lots de : 1

Taraud à main à goujures droites NO2 avec entrée 4-6xP, pour filetage métrique fin ISO M30 au pas de 2,00 mm et classe de tolérance 6H, dimensions selon norme ISO 529 avec queue de 20,0 mm et carré d'entraînement de 16,0 mm, en HSS finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage, les aciers au carbone non alliés et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E513M30X2.0NO2
GradeLumineux
Product Number5977053
Product FamilyE513

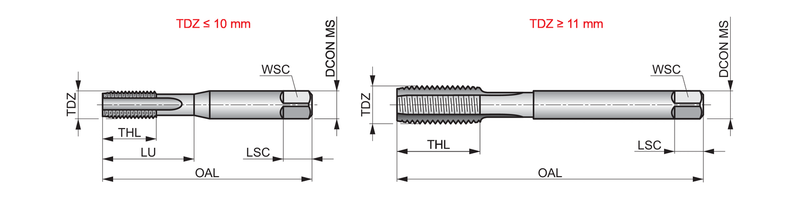

Dimensions
Overall Length — in (OAL)5.4331"
Overall Length — mm (OAL)138.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)30
Thread Form (THFT)MF - Métrique fine
Thread Pitch — mm (TP)2.0 mm
Thread Pitch — in (TP)0.0787"
Tool Information
ShankQueue cylindrique à entraînement carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number155721
EAN7320760155721
File Type Download
E513M30X2.0NO2 — Line Drawing PDF Download
