UGC DOR5977075
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$294.94 CAD - $294.94 CAD
$294.94 CAD
$294.94 CAD - $294.94 CAD
$294.94 CAD

Vendu en lots de : 1

Taraud à main à coupe droite NO3 avec entrée courte 2-3xP, pour filet métrique fin ISO M33 au pas de 2,00 mm et de classe de tolérance 6H, dimensions conformes à la norme ISO 529 avec queue de 22,4 mm et carré d'entraînement de 18,0 mm, en HSS poli brillant pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage et les aciers au carbone non alliés, le cuivre et les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E513M33X2.0NO3
GradeLumineux
Product Number5977075
Product FamilyE513

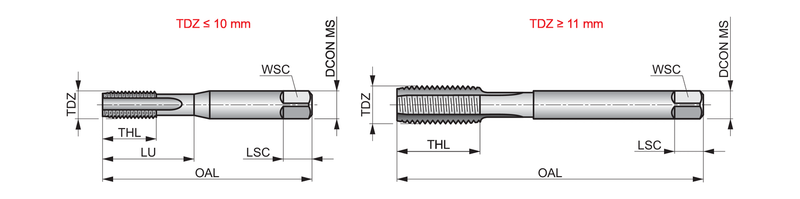

Dimensions
Overall Length — in (OAL)5.9449"
Overall Length — mm (OAL)151.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.8819"
Connection Dia. — mm (DCON)22.4 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)33
Thread Form (THFT)MF - Filetage métrique fin
Thread Pitch — mm (TP)2.0 mm
Thread Pitch — in (TP)0.0787"
Tool Information
ShankQueue cylindrique à carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number96611
EAN7320760096611
File Type Download
E513M33X2.0NO3 — Line Drawing PDF Download
