E513M24X2.0NO3
E513M24X2.0NO3
E513M24X2.0NO3

E513M24X2.0NO3

UGC DOR5977079
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$156.46 CAD - $156.46 CAD
$156.46 CAD
$156.46 CAD - $156.46 CAD
$156.46 CAD

Vendu en lots de : 1

Taraud à main à coupe droite NO3 avec entrée tronquée 2-3xP, pour filet métrique fin ISO M24 au pas de 2,00 mm et classe de tolérance 6H, dimensions conformes à la norme ISO 529 avec queue de 18,0 mm et carré d'entraînement de 14,0 mm, en HSS brillant pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers à usinage facile, aciers au carbone non alliés et le cuivre ou alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E513M24X2.0NO3
GradeLumineux
Product Number5977079
Product FamilyE513

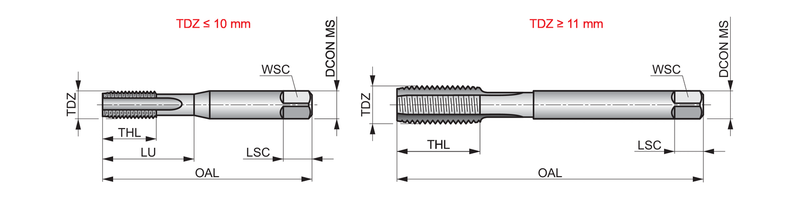

Dimensions
Overall Length — in (OAL)5.1181"
Overall Length — mm (OAL)130.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.7087"
Connection Dia. — mm (DCON)18.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)24
Thread Form (THFT)MF - Filetage métrique fin
Thread Pitch — mm (TP)2.0 mm
Thread Pitch — in (TP)0.0787"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number96505
EAN7320760096505
File Type Download
E513M24X2.0NO3 — Line Drawing PDF Download
