E513M6X.75NO2
E513M6X.75NO2
E513M6X.75NO2

E513M6X.75NO2

UGC DOR5977094
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$27.11 CAD - $27.11 CAD
$27.11 CAD
$27.11 CAD - $27.11 CAD
$27.11 CAD

Vendu en lots de : 1

Taraud à main à coupe droite NO2, 2ème chanfrein 4-6xP, pour filetages métriques fins ISO M6 au pas de 0,75 mm et de classe de tolérance 6H, dimensions selon la norme ISO 529 avec queue de 6,3 mm et carré d'entraînement de 5,0 mm, en HSS brillant pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers à usinabilité améliorée et les aciers au carbone non alliés, ainsi que le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E513M6X.75NO2
GradeLumineux
Product Number5977094
Product FamilyE513

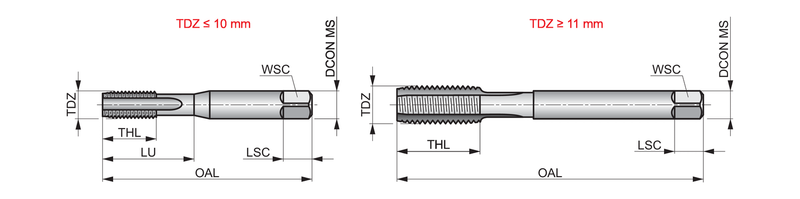

Dimensions
Overall Length — in (OAL)2.5984"
Overall Length — mm (OAL)66.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)1.0236"
Usable Length — mm (LU)26.0 mm
Connection Dia. — in (DCON)0.248"
Connection Dia. — mm (DCON)6.3 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)6
Thread Form (THFT)MF - Mètrique fine
Thread Pitch — mm (TP)0.75 mm
Thread Pitch — in (TP)0.0295"
Tool Information
ShankQueue cylindrique à entraînement carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number152461
EAN7320760152461
File Type Download
E513M6X.75NO2 — Line Drawing PDF Download
