E513M36X3.0NO3
E513M36X3.0NO3
E513M36X3.0NO3

E513M36X3.0NO3

UGC DOR5977105
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$293.89 CAD - $293.89 CAD
$293.89 CAD
$293.89 CAD - $293.89 CAD
$293.89 CAD

Vendu en lots de : 1

Taraud à main à coupe droite NO3, entrée progressive 2-3xP, pour filetage métrique fin ISO M36 au pas de 3,00 mm et tolérance 6H, dimensions conformes à la norme ISO 529, queue de 25,0 mm et carré d'entraînement de 20,0 mm, en HSS, finition brillante, pour le taraudage de trous traversants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage et les aciers au carbone non alliés, ainsi que le cuivre et les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E513M36X3.0NO3
GradeLumineux
Product Number5977105
Product FamilyE513

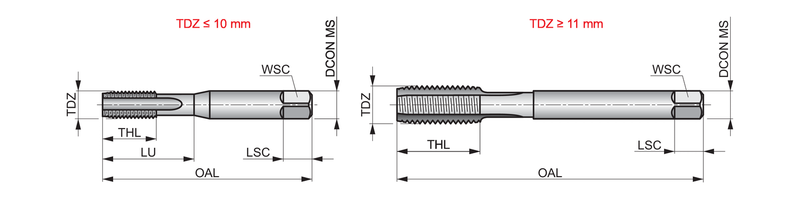

Dimensions
Overall Length — in (OAL)6.378"
Overall Length — mm (OAL)162.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.9843"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)36
Thread Form (THFT)MF - Pas fin métrique
Thread Pitch — mm (TP)3.0 mm
Thread Pitch — in (TP)0.1181"
Tool Information
ShankQueue cylindrique et entraînement carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number96666
EAN7320760096666
File Type Download
E513M36X3.0NO3 — Line Drawing PDF Download
