E513M8X.75NO3
E513M8X.75NO3
E513M8X.75NO3

E513M8X.75NO3

UGC DOR5977141
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$32.40 CAD - $32.40 CAD
$32.40 CAD
$32.40 CAD - $32.40 CAD
$32.40 CAD

Vendu en lots de : 1

Taraud à main à coupe droite NO3 avec entrée conique 2-3xP, pour filetage métrique fin ISO M8 au pas de 0,75 mm et classe de tolérance 6H, dimensions conformes à la norme ISO 529 avec queue de 8,0 mm et carré d'entraînement de 6,3 mm, en HSS finition brillante pour le taraudage de trous borgnes ou débouchants jusqu'à 1,5xD dans les aciers de décolletage, les aciers au carbone non alliés, le cuivre et les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E513M8X.75NO3
GradeLumineux
Product Number5977141
Product FamilyE513

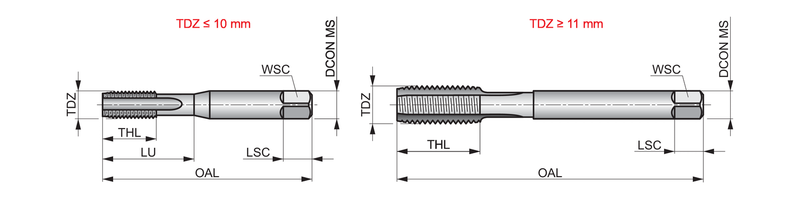

Dimensions
Overall Length — in (OAL)2.8346"
Overall Length — mm (OAL)72.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)1.1417"
Usable Length — mm (LU)29.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)8
Thread Form (THFT)MF - Pas métrique fin
Thread Pitch — mm (TP)0.75 mm
Thread Pitch — in (TP)0.0295"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number96802
EAN7320760096802
File Type Download
E513M8X.75NO3 — Line Drawing PDF Download
