E513M45X1.5NON2
E513M45X1.5NON2
E513M45X1.5NON2

E513M45X1.5NON2

UGC DOR5977160
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$490.51 CAD - $490.51 CAD
$490.51 CAD
$490.51 CAD - $490.51 CAD
$490.51 CAD

Vendu en lots de : 1

Taraud machine à main à goujures droites NO2 avec entrée 4-6xP, pour filetage métrique ISO fin M45 au pas de 1,50 mm et de classe de tolérance 6H, dimensions selon la norme ISO 529 avec queue de 31,5 mm et carré d'entraînement de 25,0 mm, en HSS finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage et les aciers au carbone non alliés, ainsi que le cuivre et ses alliages

For more information about this product, click here

Identification
Ordering Code (ANSI)E513M45X1.5NONO2
Product Name (ISO)E513M45X1.5NON2
GradeLumineux
Product Number5977160
Product FamilyE513

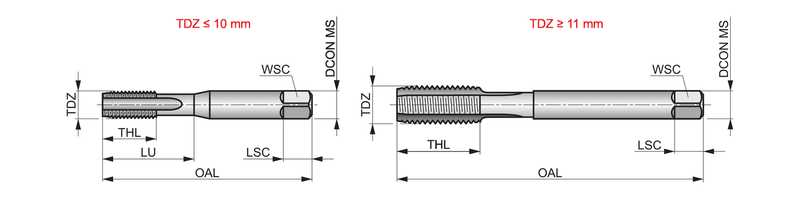

Dimensions
Overall Length — in (OAL)7.3622"
Overall Length — mm (OAL)187.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)1.2402"
Connection Dia. — mm (DCON)31.5 mm
Number of Flutes (NOF)6
Threading
Thread Diameter Size (TDZ)45
Thread Form (THFT)MF - Filetage métrique fin
Thread Pitch — mm (TP)1.5 mm
Thread Pitch — in (TP)0.0591"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number155677
EAN7320760155677
File Type Download
E513M45X1.5NON2 — Line Drawing PDF Download
