E513M5X.75NON2
E513M5X.75NON2
E513M5X.75NON2

E513M5X.75NON2

UGC DOR5977231
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$29.76 CAD - $29.76 CAD
$29.76 CAD
$29.76 CAD - $29.76 CAD
$29.76 CAD

Vendu en lots de : 1

Taraud à main à coupe droite NO2 avec entrée de 4-6xP, pour filetage métrique ISO fin M5 au pas de 0,75 mm et classe de tolérance 6H, dimensions selon la norme ISO 529 avec queue de 5,0 mm et carré d'entraînement de 4,0 mm, en HSS finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers à usinage libre et au carbone non allié et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E513M5X.75NO2
GradeLumineux
Product Number5977231
Product FamilyE513

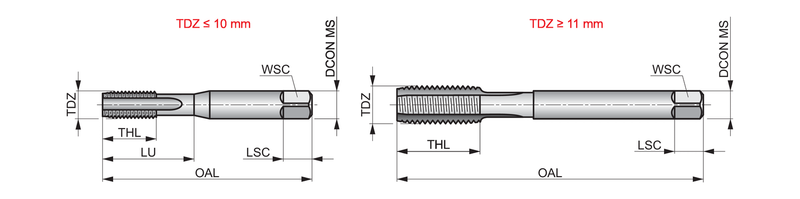

Dimensions
Overall Length — in (OAL)2.2835"
Overall Length — mm (OAL)58.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)0.8661"
Usable Length — mm (LU)22.0 mm
Connection Dia. — in (DCON)0.1969"
Connection Dia. — mm (DCON)5.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)5
Thread Form (THFT)MF - Pas métrique fin
Thread Pitch — mm (TP)0.75 mm
Thread Pitch — in (TP)0.0295"
Tool Information
ShankQueue cylindrique avec Carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number156773
EAN7320760156773
File Type Download
E513M5X.75NON2 — Line Drawing PDF Download
