E5311/4NO1
E5311/4NO1
E5311/4NO1

E5311/4NO1

UGC DOR5977252
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.06 CAD - $20.06 CAD
$20.06 CAD
$20.06 CAD - $20.06 CAD
$20.06 CAD

Vendu en lots de : 1

Taraud à main à coupe droite NO1 avec entrée conique 6-8xP, pour filetage British Standard Whitworth BSW 1/4" avec 20 filets par pouce et classe de tolérance moyenne, dimensions conformes à la norme ISO 529 avec queue de 6,3 mm et carré d'entraînement de 5,0 mm, en HSS finition brillante pour le taraudage de trous débouchants ou borgnes de 1,5xD dans les aciers de décolletage, les aciers au carbone non alliés, le cuivre et ses alliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5311/4NO1
GradeLumineux
Product Number5977252
Product FamilyE531

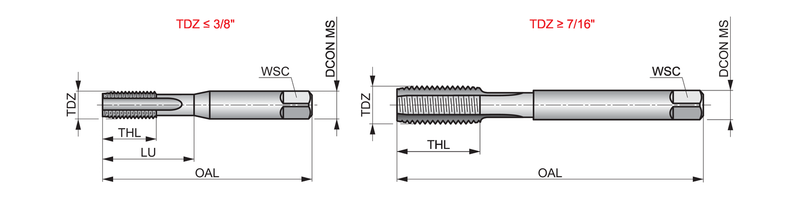

Dimensions
Overall Length — in (OAL)2.5984"
Overall Length — mm (OAL)66.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)1.0236"
Usable Length — mm (LU)26.0 mm
Connection Dia. — in (DCON)0.248"
Connection Dia. — mm (DCON)6.3 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)1/4
Thread Diameter — in (TD)0.25"
Thread Diameter — mm (TD)6.35 mm
Thread Form (THFT)BSW - Pas Whitworth normalisé
Threads per Inch (TPI)20.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number155288
EAN7320760155288
File Type Download
E5311/4NO1 — Line Drawing PDF Download
