E5311/8NO3
E5311/8NO3
E5311/8NO3

E5311/8NO3

UGC DOR5977270
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.64 CAD - $25.64 CAD
$25.64 CAD
$25.64 CAD - $25.64 CAD
$25.64 CAD

Vendu en lots de : 1

Taraud à main à coupe droite NO3 avec entrée courte (2-3 filets), pour filet British Standard Whitworth BSW 1/8" avec 40 filets par pouce et classe de tolérance Medium, dimensions selon la norme ISO 529 avec queue de 3,15 mm et carré d'entraînement de 2,5 mm, en HSS avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers à usinage facile, les aciers au carbone non alliés et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5311/8NO3
GradeLumineux
Product Number5977270
Product FamilyE531

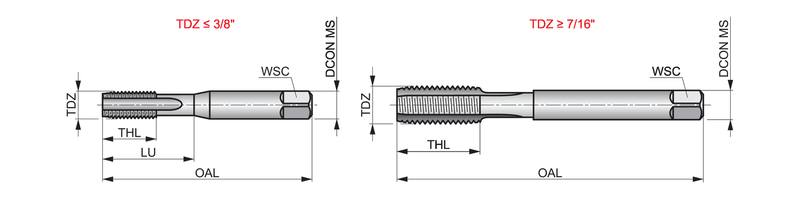

Dimensions
Overall Length — in (OAL)1.8898"
Overall Length — mm (OAL)48.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)0.4921"
Usable Length — mm (LU)12.5 mm
Connection Dia. — in (DCON)0.124"
Connection Dia. — mm (DCON)3.15 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)1/8
Thread Diameter — in (TD)0.125"
Thread Diameter — mm (TD)3.175 mm
Thread Form (THFT)BSW - British Standard Whitworth
Threads per Inch (TPI)40.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number98653
EAN7320760098653
File Type Download
E5311/8NO3 — Line Drawing PDF Download
