E513M18X2.0NONO2
E513M18X2.0NONO2
E513M18X2.0NONO2

E513M18X2.0NONO2

UGC DOR5977283
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$86.69 CAD - $86.69 CAD
$86.69 CAD
$86.69 CAD - $86.69 CAD
$86.69 CAD

Vendu en lots de : 1

Taraud à main à coupe droite NO2 avec entrée 4-6xP, pour filetage métrique fin ISO M18 au pas de 2,00 mm et classe de tolérance 6H, dimensions selon la norme ISO 529 avec queue de 14,0 mm et carré d'entraînement de 11,2 mm, HSS poli brillant pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage, les aciers au carbone non alliés, le cuivre et les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E513M18X2.0NO2
GradeLumineux
Product Number5977283
Product FamilyE513

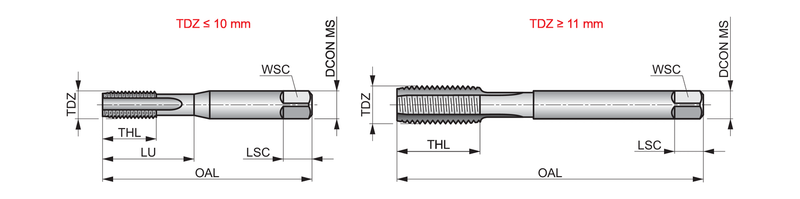

Dimensions
Overall Length — in (OAL)4.4094"
Overall Length — mm (OAL)112.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)18
Thread Form (THFT)MF - Filetage métrique fin
Thread Pitch — mm (TP)2.0 mm
Thread Pitch — in (TP)0.0787"
Tool Information
ShankQueue cylindrique avec Carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number96307
EAN7320760096307
File Type Download
E513M18X2.0NONO2 — Line Drawing PDF Download
