E5311NO2
E5311NO2
E5311NO2

E5311NO2

UGC DOR5977290
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$159.10 CAD - $159.10 CAD
$159.10 CAD
$159.10 CAD - $159.10 CAD
$159.10 CAD

Vendu en lots de : 1

Taraud à main à coupe droite NO2 avec entrée 4-6 filets, pour filetage British Standard Whitworth BSW 1" à 8 filets par pouce avec classe de tolérance Moyenne, dimensions selon la norme ISO 529 avec queue de 18,0mm et carré d'entraînement de 14,0mm, en HSS avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage, les aciers au carbone non alliés, le cuivre et les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5311NO2
GradeLumineux
Product Number5977290
Product FamilyE531

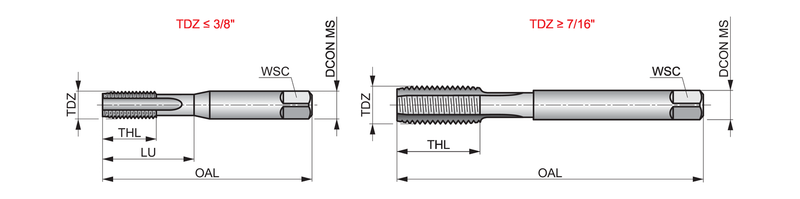

Dimensions
Overall Length — in (OAL)5.1181"
Overall Length — mm (OAL)130.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.7087"
Connection Dia. — mm (DCON)18.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)1"
Thread Diameter — in (TD)1.0"
Thread Diameter — mm (TD)25.4 mm
Thread Form (THFT)BSW - British Standard Whitworth
Threads per Inch (TPI)8.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number150948
EAN7320760150948
File Type Download
E5311NO2 — Line Drawing PDF Download
