E513M20X1.0NO3
E513M20X1.0NO3
E513M20X1.0NO3

E513M20X1.0NO3

UGC DOR5977305
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$116.29 CAD - $116.29 CAD
$116.29 CAD
$116.29 CAD - $116.29 CAD
$116.29 CAD

Vendu en lots de : 1

Taraud à main à coupe droite NO3 avec entrée courte (2-3 filets), pour filetage ISO métrique fin M20 au pas de 1,00 mm et tolérance 6H, dimensions selon la norme ISO 529 avec queue de 14,0 mm et carré d'entraînement de 11,2 mm, en HSS finition brillante pour taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage, les aciers au carbone non alliés et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E513M20X1.0NO3
GradeLumineux
Product Number5977305
Product FamilyE513

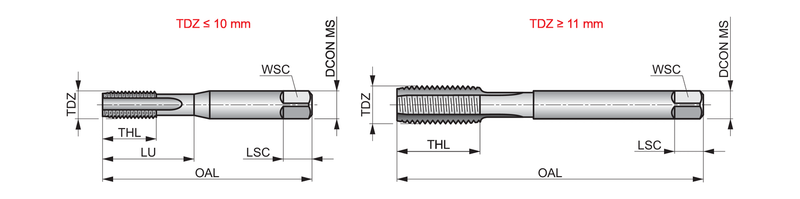

Dimensions
Overall Length — in (OAL)4.4094"
Overall Length — mm (OAL)112.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)20
Thread Form (THFT)MF - Pas fin métrique
Thread Pitch — mm (TP)1.0 mm
Thread Pitch — in (TP)0.0394"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number96352
EAN7320760096352
File Type Download
E513M20X1.0NO3 — Line Drawing PDF Download
