E513M20X1.5NON1
E513M20X1.5NON1
E513M20X1.5NON1

E513M20X1.5NON1

UGC DOR5977311
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$105.71 CAD - $105.71 CAD
$105.71 CAD
$105.71 CAD - $105.71 CAD
$105.71 CAD

Vendu en lots de : 1

Taraud à main à coupe droite NO1 avec entrée longue 6-8xP, pour filetages métriques fins ISO M20 au pas de 1,50 mm et classe de tolérance 6H, dimensions conformes à la norme ISO 529 avec queue de 14,0 mm et carré d'entraînement de 11,2 mm, en HSS avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers à usinage facile et les aciers au carbone non alliés, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI)E513M20X1.5NO1
Product Name (ISO)E513M20X1.5NON1
GradeLumineux
Product Number5977311
Product FamilyE513

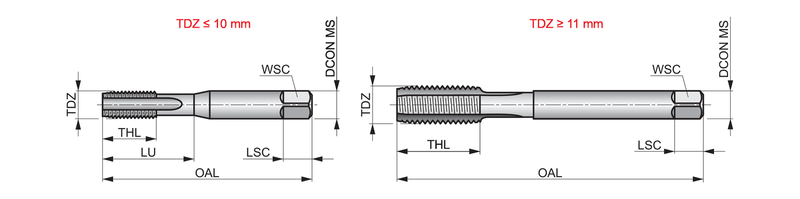

Dimensions
Overall Length — in (OAL)4.4094"
Overall Length — mm (OAL)112.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)20
Thread Form (THFT)MF - Pas fin métrique
Thread Pitch — mm (TP)1.5 mm
Thread Pitch — in (TP)0.0591"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number156940
EAN7320760156940
File Type Download
E513M20X1.5NON1 — Line Drawing PDF Download
