E513M20X1,5NO2
E513M20X1,5NO2
E513M20X1,5NO2

E513M20X1,5NO2

UGC DOR5977314
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$105.71 CAD - $105.71 CAD
$105.71 CAD
$105.71 CAD - $105.71 CAD
$105.71 CAD

Vendu en lots de : 1

Taraud à main à coupe droite NO2 avec entrée 4-6 filets, pour filet M20 métrique fin au pas de 1,50 mm et tolérance 6H, dimensions selon norme ISO 529 avec queue de 14,0 mm et carré d'entraînement de 11,2 mm, en HSS brillant pour taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers à usinage facile et aciers au carbone non alliés, le cuivre et les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E513M20X1.5NO2
GradeLumineux
Product Number5977314
Product FamilyE513

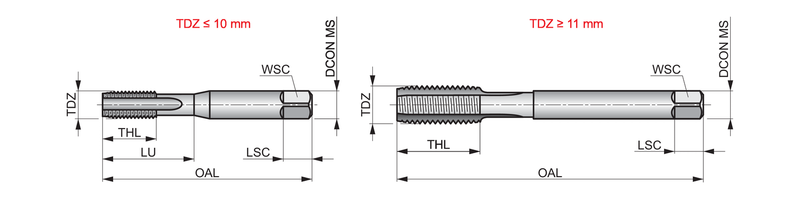

Dimensions
Overall Length — in (OAL)4.4094"
Overall Length — mm (OAL)112.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)20
Thread Form (THFT)MF - Métrique fine
Thread Pitch — mm (TP)1.5 mm
Thread Pitch — in (TP)0.0591"
Tool Information
ShankQueue cylindrique avec carré d'entraînement
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number152591
EAN7320760152591
File Type Download
E513M20X1,5NO2 — Line Drawing PDF Download
