E5313/4NON
E5313/4NON
E5313/4NON

E5313/4NON

UGC DOR5977326
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$85.63 CAD - $85.63 CAD
$85.63 CAD
$85.63 CAD - $85.63 CAD
$85.63 CAD

Vendu en lots de : 1

Taraud à main à coupe droite NO2 avec entrée 4-6xP, pour filetage British Standard Whitworth BSW 3/4" avec 10 TPI et classe de tolérance Medium, dimensions selon la norme ISO 529 avec queue de 14.0mm et carré d'entraînement de 11.2mm, en HSS finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1.5xD dans les aciers de décolletage et les aciers au carbone non alliés, ainsi que le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5313/4NO2
GradeLumineux
Product Number5977326
Product FamilyE531
Dimensions
Overall Length — in (OAL)4.4094"
Overall Length — mm (OAL)112.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)3/4
Thread Diameter — in (TD)0.75"
Thread Diameter — mm (TD)19.05 mm
Thread Form (THFT)BSW - Filetage Whitworth britannique standard
Threads per Inch (TPI)10.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number150979
EAN7320760150979
File Type Download

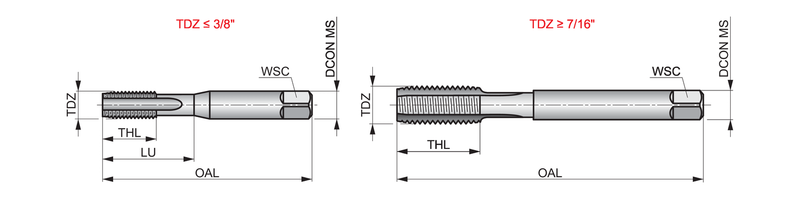

E5313/4NON — Line Drawing PDF Download
