E5313/8NO1
E5313/8NO1
E5313/8NO1

E5313/8NO1

UGC DOR5977335
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$28.64 CAD - $28.64 CAD
$28.64 CAD
$28.64 CAD - $28.64 CAD
$28.64 CAD

Vendu en lots de : 1

Taraud à main à coupe droite NO1 avec une amorce conique 6-8xP, pour filetage British Standard Whitworth BSW 3/8" avec 16 filets par pouce et classe de tolérance moyenne, dimensions selon la norme ISO 529 avec queue de 10,0 mm et carré d'entraînement de 8,0 mm, en HSS finition brillante pour le filetage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage, les aciers au carbone non alliés, le cuivre et les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5313/8NO1
GradeLumineux
Product Number5977335
Product FamilyE531

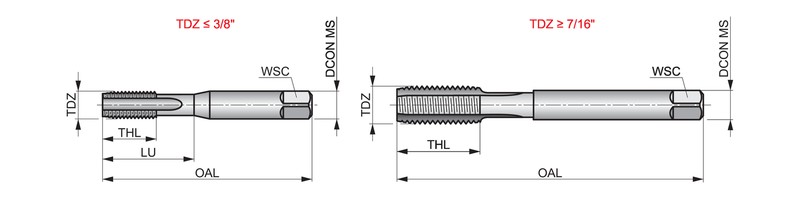

Dimensions
Overall Length — in (OAL)3.1496"
Overall Length — mm (OAL)80.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)1.2598"
Usable Length — mm (LU)32.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)3/8
Thread Diameter — in (TD)0.375"
Thread Diameter — mm (TD)9.525 mm
Thread Form (THFT)BSW - British standard Whitworth
Threads per Inch (TPI)16.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number155240
EAN7320760155240
File Type Download
E5313/8NO1 — Line Drawing PDF Download
