E5313/8NO2
E5313/8NO2
E5313/8NO2

E5313/8NO2

UGC DOR5977338
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$28.64 CAD - $28.64 CAD
$28.64 CAD
$28.64 CAD - $28.64 CAD
$28.64 CAD

Vendu en lots de : 1

Taraud à main à coupe droite NO2 avec une entrée de 4-6xP, pour filetage British Standard Whitworth BSW 3/8" avec 16 filets par pouce et tolérance moyenne, dimensions conformes à la norme ISO 529 avec queue de 10,0 mm et carré d'entraînement de 8,0 mm, en HSS avec finition brillante pour le taraudage de trous traversants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage, les aciers au carbone non alliés et le cuivre ou ses alliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5313/8NO2
GradeLumineux
Product Number5977338
Product FamilyE531

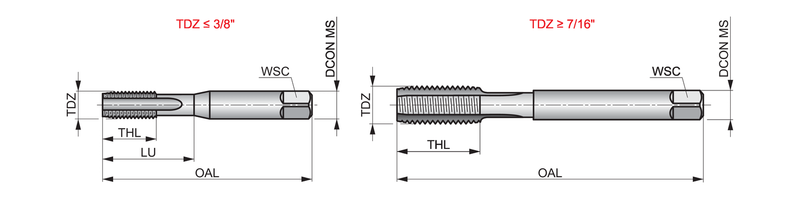

Dimensions
Overall Length — in (OAL)3.1496"
Overall Length — mm (OAL)80.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)1.2598"
Usable Length — mm (LU)32.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)3/8
Thread Diameter — in (TD)0.375"
Thread Diameter — mm (TD)9.525 mm
Thread Form (THFT)BSW - British Standard Whitworth
Threads per Inch (TPI)16.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number98738
EAN7320760098738
File Type Download
E5313/8NO2 — Line Drawing PDF Download
