E5315/16NO6
E5315/16NO6
E5315/16NO6
E5315/16NO6

E5315/16NO6

UGC DOR5977357
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$74.00 CAD - $74.00 CAD
$74.00 CAD
$74.00 CAD - $74.00 CAD
$74.00 CAD

Vendu en lots de : 1

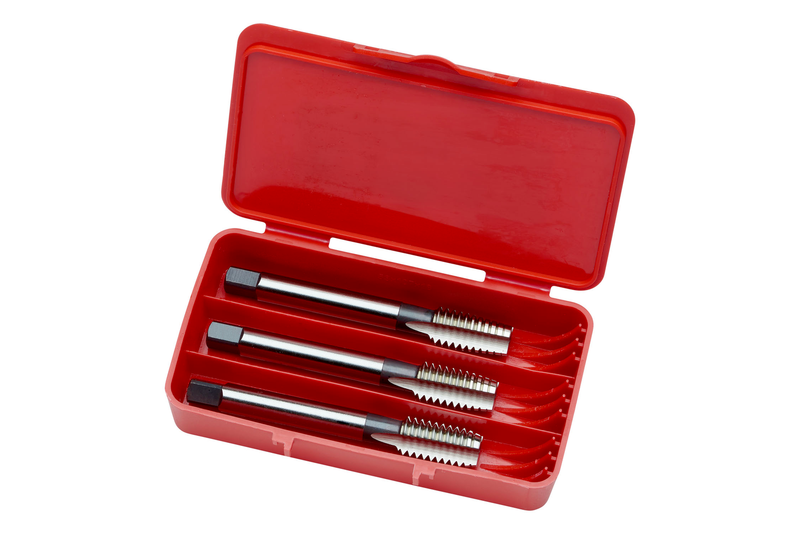

Jeu de tarauds à main à coupe droite NO6 pour filetage British Standard Whitworth BSW 5/16" avec 18 filets par pouce et classe de tolérance moyenne, composé de 1 taraud d'entrée 6-8xP, 1 taraud intermédiaire 4-6xP et 1 taraud finisseur 2-3xP, dimensions conformes à la norme ISO 529 avec queue de 8,0 mm et carré d'entraînement de 6,3 mm, HSS finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage et les aciers au carbone non alliés, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5315/16NO6
GradeLumineux
Product Number5977357
Product FamilyE531
Dimensions
Overall Length — in (OAL)2.8346"
Overall Length — mm (OAL)72.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)1.1417"
Usable Length — mm (LU)29.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)16 mai
Thread Diameter — in (TD)0.3125"
Thread Diameter — mm (TD)7.938 mm
Thread Form (THFT)BSW - Filetage Whitworth à pas gros (British Standard Whitworth)
Threads per Inch (TPI)18.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number155257
EAN7320760155257
File Type Download
E5315/16NO6 — Line Drawing PDF Download
