E5315/32NO2
E5315/32NO2
E5315/32NO2

E5315/32NO2

UGC DOR5977363
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$37.21 CAD - $37.21 CAD
$37.21 CAD
$37.21 CAD - $37.21 CAD
$37.21 CAD

Vendu en lots de : 1

Taraud à main à coupe droite NO2 avec entrée seconde 4-6xP, pour filetage British Standard Whitworth BSW 5/32" avec 32 filets par pouce et classe de tolérance moyenne, dimensions selon la norme ISO 529 avec queue de 4,0 mm et carré d'entraînement de 3,15 mm, HSS avec finition brillante pour le taraudage de trous traversants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage et les aciers au carbone non alliés ainsi que le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5315/32NO2
GradeLumineux
Product Number5977363
Product FamilyE531

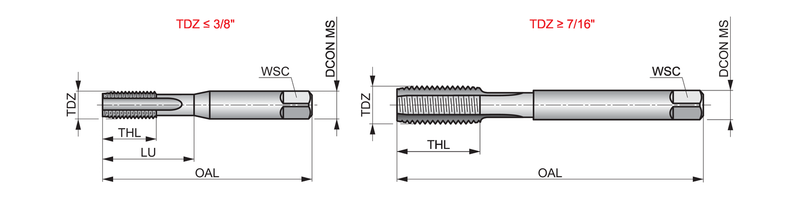

Dimensions
Overall Length — in (OAL)2.0866"
Overall Length — mm (OAL)53.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)0.5512"
Usable Length — mm (LU)14.0 mm
Connection Dia. — in (DCON)0.1575"
Connection Dia. — mm (DCON)4.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)5/32
Thread Diameter — in (TD)0.1563"
Thread Diameter — mm (TD)3.969 mm
Thread Form (THFT)BSW - British standard Whitworth
Threads per Inch (TPI)32.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number150986
EAN7320760150986
File Type Download
E5315/32NO2 — Line Drawing PDF Download
