E5315/8NO3
E5315/8NO3
E5315/8NO3

E5315/8NO3

UGC DOR5977377
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$58.14 CAD - $58.14 CAD
$58.14 CAD
$58.14 CAD - $58.14 CAD
$58.14 CAD

Vendu en lots de : 1

Taraud machine à coupe droite NO3 avec entrée conique 2-3xP, pour filetage British Standard Whitworth BSW 5/8" avec 11 filets par pouce et classe de tolérance moyenne, dimensions selon la norme ISO 529 avec queue de 12,5 mm et carré d'entraînement de 10,0 mm, en HSS finition brillante pour taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage et les aciers au carbone non alliés, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5315/8NO3
GradeLumineux
Product Number5977377
Product FamilyE531

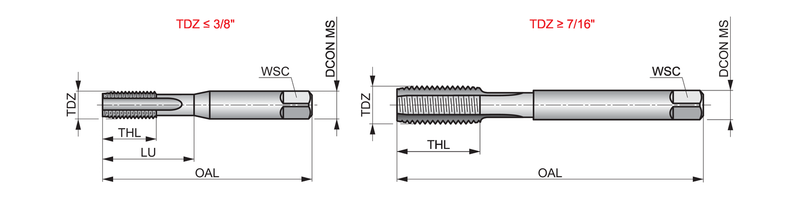

Dimensions
Overall Length — in (OAL)4.0157"
Overall Length — mm (OAL)102.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.4921"
Connection Dia. — mm (DCON)12.5 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)5/8
Thread Diameter — in (TD)0.625"
Thread Diameter — mm (TD)15.875 mm
Thread Form (THFT)BSW - British Standard Whitworth
Threads per Inch (TPI)11.0
Tool Information
ShankQueue cylindrique avec carré d'entraînement
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number98813
EAN7320760098813
File Type Download
E5315/8NO3 — Line Drawing PDF Download
