E513M10X.75NO3
E513M10X.75NO3
E513M10X.75NO3

E513M10X.75NO3

UGC DOR5977398
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$41.01 CAD - $41.01 CAD
$41.01 CAD
$41.01 CAD - $41.01 CAD
$41.01 CAD

Vendu en lots de : 1

Taraud à main à coupe droite NO3 avec entrée de 2 à 3 filets (plug), pour filetage métrique fin ISO M10 avec pas de 0,75 mm et classe de tolérance 6H, dimensions conformes à la norme ISO 529 avec queue de 10,0 mm et carré d'entraînement de 8,0 mm, en acier rapide (HSS) finition brillante, pour filetage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers à usinage facile et les aciers au carbone non alliés, ainsi que le cuivre et les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E513M10X.75NO3
GradeLumineux
Product Number5977398
Product FamilyE513

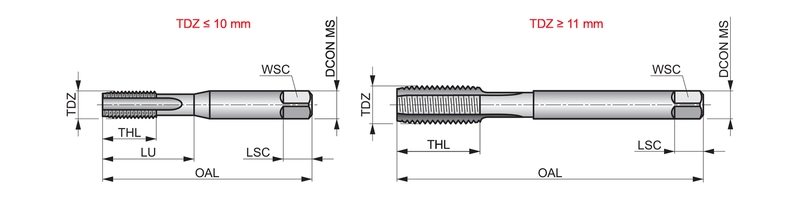

Dimensions
Overall Length — in (OAL)3.1496"
Overall Length — mm (OAL)80.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)1.3386"
Usable Length — mm (LU)34.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)10
Thread Form (THFT)MF - Métrique fine
Thread Pitch — mm (TP)0.75 mm
Thread Pitch — in (TP)0.0295"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number123065
EAN7320760123065
File Type Download
E513M10X.75NO3 — Line Drawing PDF Download
