E513M16X1.5NO7
E513M16X1.5NO7
E513M16X1.5NO7

E513M16X1.5NO7

UGC DOR5977401
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$124.21 CAD - $124.21 CAD
$124.21 CAD
$124.21 CAD - $124.21 CAD
$124.21 CAD

Vendu en lots de : 1

Jeu de tarauds à main à coupe droite NO7 pour filetage métrique fin ISO M16 au pas de 1,50 mm et de classe de tolérance 6H, comprenant 1 taraud d'entrée 4-6xP et 1 taraud de finition 2-3xP, dimensions selon la norme ISO 529 avec queue de 12,5 mm et carré d'entraînement de 10,0 mm, HSS finition brillante pour taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage et les aciers au carbone non alliés, ainsi que le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E513M16X1.5NO7
GradeLumineux
Product Number5977401
Product FamilyE513

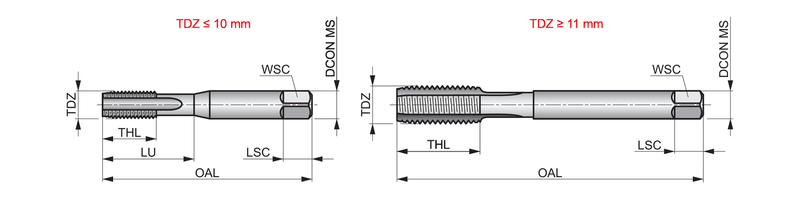

Dimensions
Overall Length — in (OAL)4.0157"
Overall Length — mm (OAL)102.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.4921"
Connection Dia. — mm (DCON)12.5 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)16
Thread Form (THFT)MF - Filetage métrique fin
Thread Pitch — mm (TP)1.5 mm
Thread Pitch — in (TP)0.0591"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number96239
EAN7320760096239
File Type Download
E513M16X1.5NO7 — Line Drawing PDF Download
