E5503/4
E5503/4
E5503/4

E5503/4

UGC DOR5977442
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$170.90 CAD - $170.90 CAD
$170.90 CAD
$170.90 CAD - $170.90 CAD
$170.90 CAD

Vendu en lots de : 1

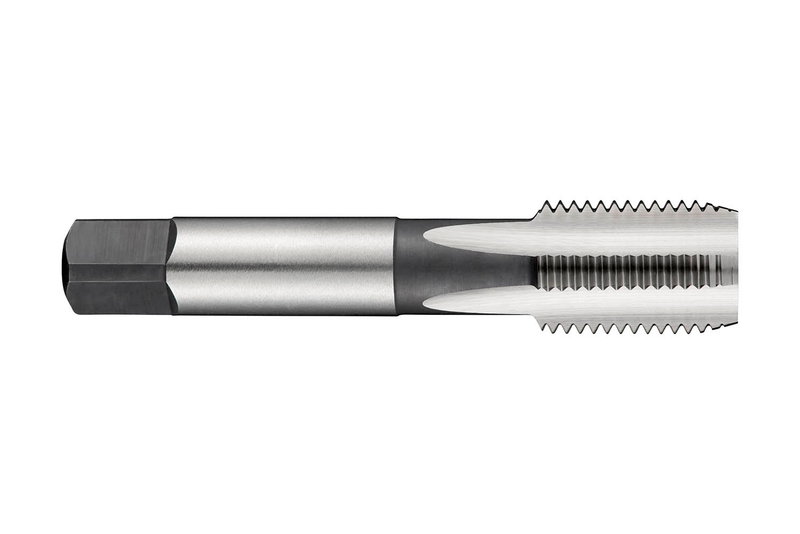

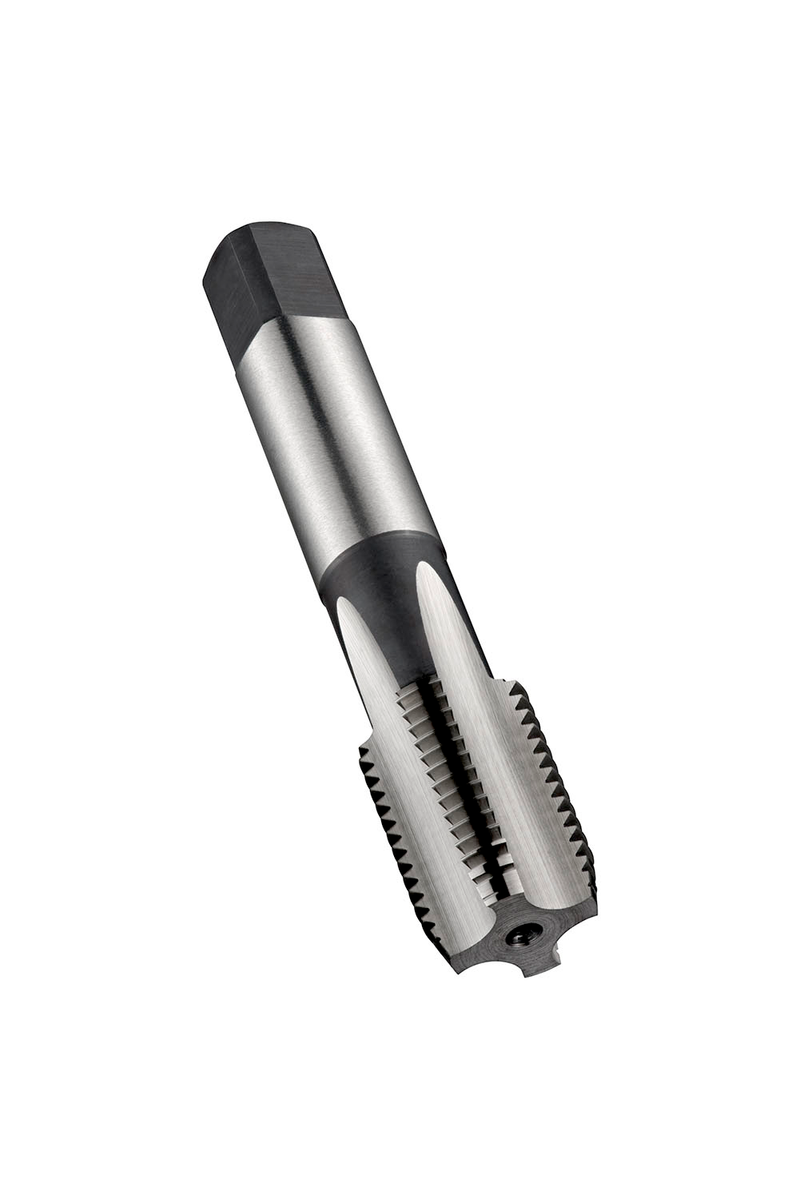

Taraud à main à coupe droite forme C, pour filetage conique British Standard Pipe Taper Rc 3/4" avec 14 filets par pouce et classe de tolérance normale, dimensions conformes à la norme ISO 2284, queue de 20,0 mm et carré d'entraînement de 16,0 mm, en HSS poli brillant, pour filetage traversant ou borgne jusqu'à 1,5xD dans les aciers à usinage facile, le cuivre et les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5503/4
GradeLumineux
Product Number5977442
Product FamilyE550
Dimensions
Overall Length — in (OAL)3.7795"
Overall Length — mm (OAL)96.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)5
Threading
Thread Diameter Size (TDZ)3/4
Thread Diameter — in (TD)1.041"
Thread Diameter — mm (TD)26.441 mm
Thread Form (THFT)Rc - Filetage conique de tuyau britannique - Série Rc
Threads per Inch (TPI)14.0
Tool Information
ShankQueue cylindrique avec carré d'entraînement
Direction of ToolD'accord
StandardISO 2284
Reference Numbers
EDP Number99513
EAN7320760099513
File Type Download

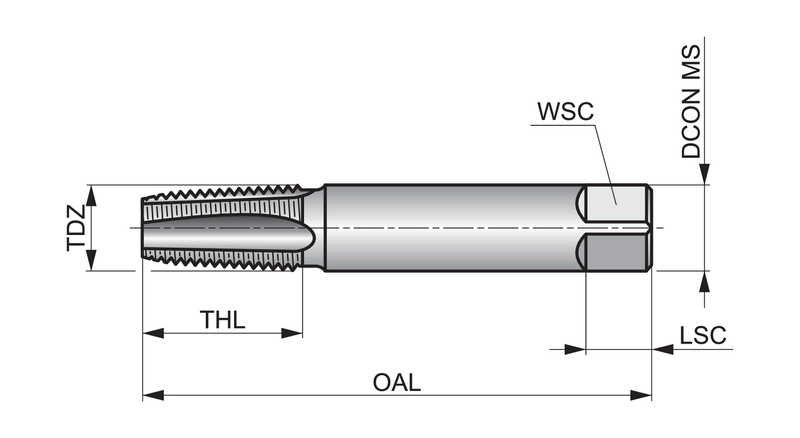

E5503/4 — Line Drawing PDF Download
