E5701.5/16X12NO3
E5701.5/16X12NO3
E5701.5/16X12NO3

E5701.5/16X12NO3

UGC DOR5977457
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$635.73 CAD - $635.73 CAD
$635.73 CAD
$635.73 CAD - $635.73 CAD
$635.73 CAD

Vendu en lots de : 1

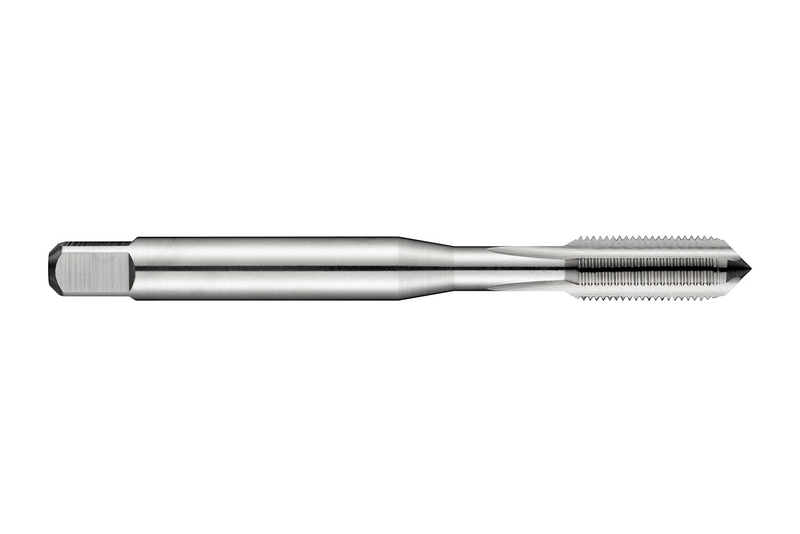

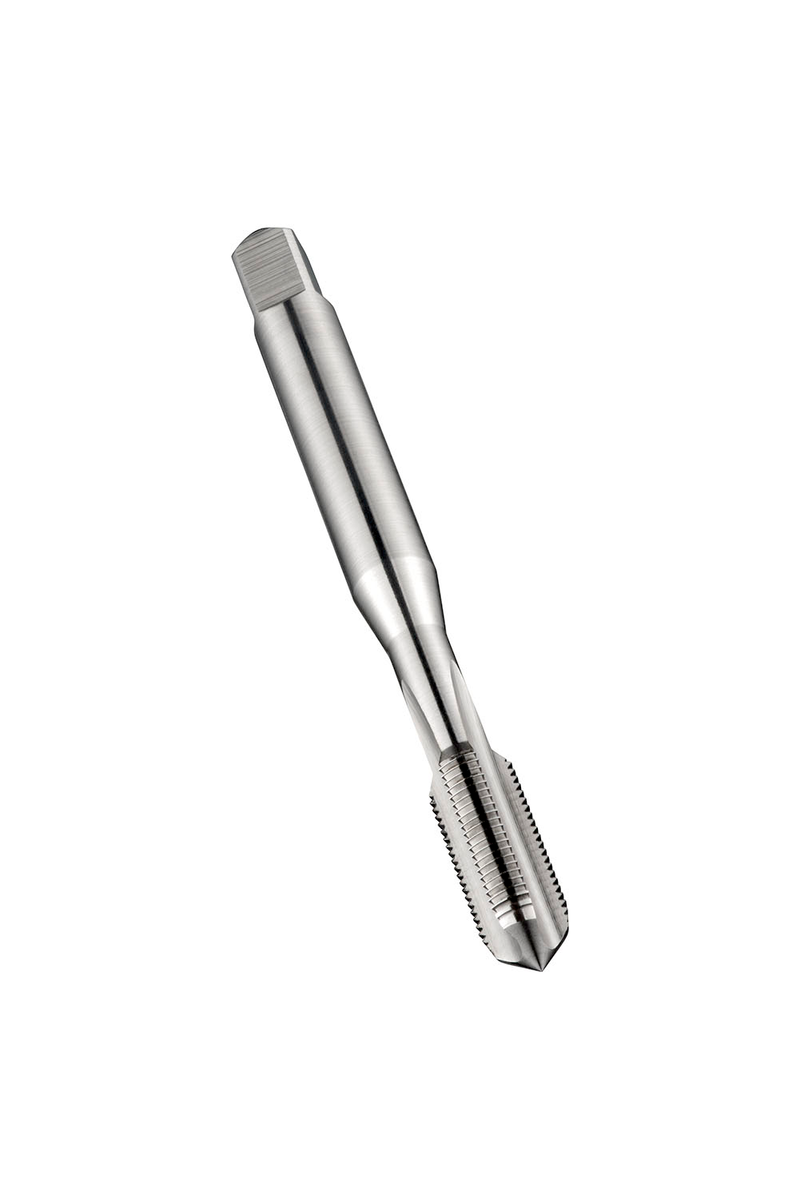

Taraud à main à coupe droite NO3 avec entrée courte (2-3 filets) pour filetage UN 1.5/16" à 12 filets par pouce et classe de tolérance 2B, dimensions selon la norme ISO 529 avec queue de 22,4mm et carré d'entraînement de 18,0mm, en HSS finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage, aciers au carbone non alliés, cuivres et alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5701.5/16X12NO3
GradeLumineux
Product Number5977457
Product FamilyE570
Dimensions
Overall Length — in (OAL)5.3937"
Overall Length — mm (OAL)137.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.8819"
Connection Dia. — mm (DCON)22.4 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)1.5/16
Thread Diameter — in (TD)1.3125"
Thread Diameter — mm (TD)33.338 mm
Thread Form (THFT)ONU - Unifié
Threads per Inch (TPI)12.0
Tool Information
ShankQueue cylindrique à carré d'entraînement
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number201008
EAN7320760201008
File Type Download
E5701.5/16X12NO3 — Line Drawing PDF Download
