E5701/4X32NO3
E5701/4X32NO3
E5701/4X32NO3

E5701/4X32NO3

UGC DOR5977459
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.84 CAD - $31.84 CAD
$31.84 CAD
$31.84 CAD - $31.84 CAD
$31.84 CAD

Vendu en lots de : 1

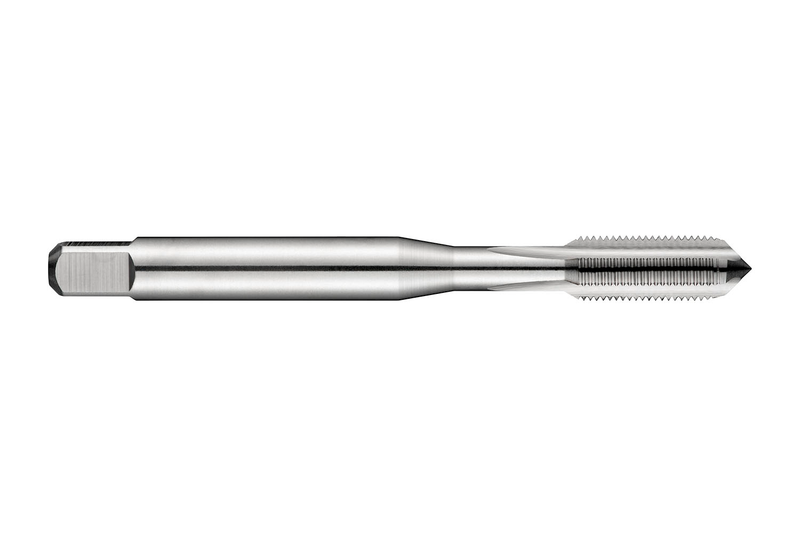

Taraud main à goujures droites NO3 avec entrée courte 2-3xP, pour filetages Unified National UN 1/4" avec 32 filets par pouce et classe de tolérance 2B, dimensions selon la norme ISO 529 avec queue de 6,3mm et carré d'entraînement de 5,0mm, en HSS finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage, les aciers au carbone non alliés, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5701/4X32NO3
GradeLumineux
Product Number5977459
Product FamilyE570
Dimensions
Overall Length — in (OAL)2.5984"
Overall Length — mm (OAL)66.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)1.0236"
Usable Length — mm (LU)26.0 mm
Connection Dia. — in (DCON)0.248"
Connection Dia. — mm (DCON)6.3 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)1/4
Thread Diameter — in (TD)0.25"
Thread Diameter — mm (TD)6.35 mm
Thread Form (THFT)NU - Unifié
Threads per Inch (TPI)32.0
Tool Information
ShankQueue cylindrique avec carré d'entraînement
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number200230
EAN7320760200230
File Type Download
E5701/4X32NO3 — Line Drawing PDF Download
