E5701/4X36NO3
E5701/4X36NO3
E5701/4X36NO3

E5701/4X36NO3

UGC DOR5977460
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.84 CAD - $31.84 CAD
$31.84 CAD
$31.84 CAD - $31.84 CAD
$31.84 CAD

Vendu en lots de : 1

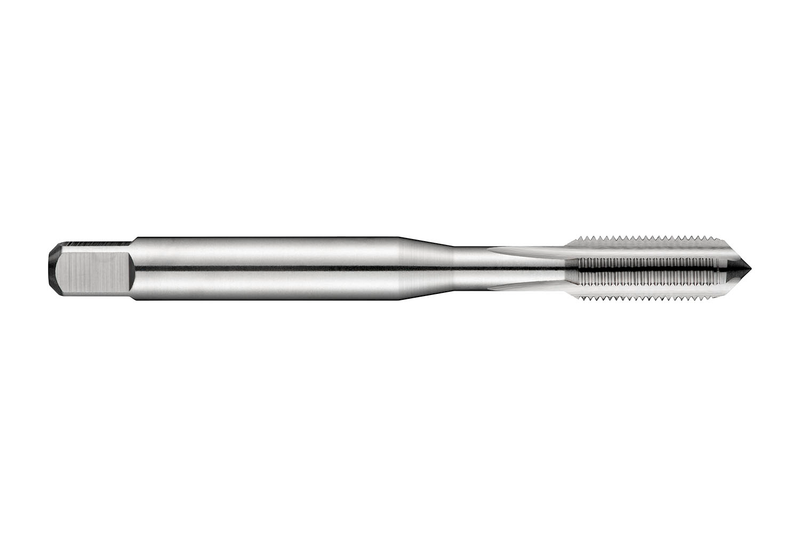

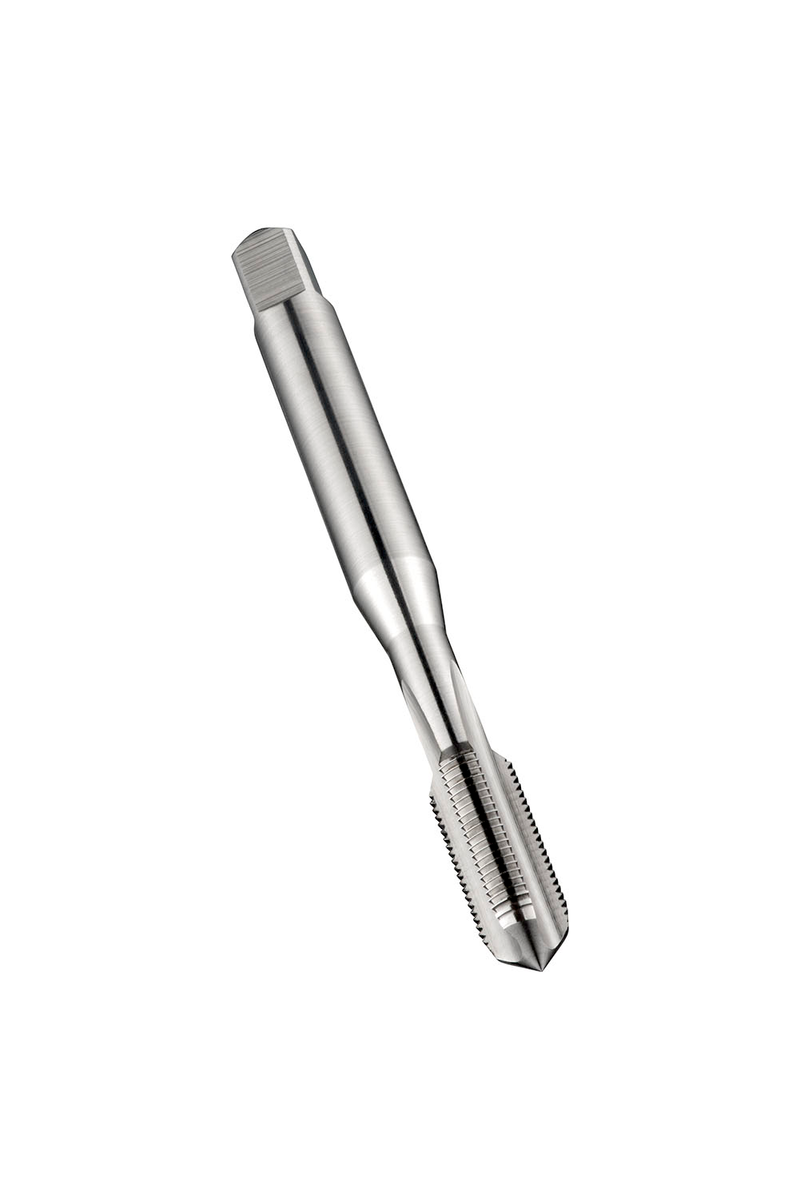

Taraud à main à coupe droite NO3 avec entrée courte (2-3 filets), pour filetages Unified National UN 1/4" avec 36 filets par pouce et classe de tolérance 2B, dimensions selon la norme ISO 529 avec queue de 6,3 mm et carré d'entraînement de 5,0 mm, en HSS avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage, les aciers au carbone non alliés et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5701/4X36NO3
GradeLumineux
Product Number5977460
Product FamilyE570
Dimensions
Overall Length — in (OAL)2.5984"
Overall Length — mm (OAL)66.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)1.0236"
Usable Length — mm (LU)26.0 mm
Connection Dia. — in (DCON)0.248"
Connection Dia. — mm (DCON)6.3 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)1/4
Thread Diameter — in (TD)0.25"
Thread Diameter — mm (TD)6.35 mm
Thread Form (THFT)NU - Unifié
Threads per Inch (TPI)36.0
Tool Information
ShankTige cylindrique à embase carrée
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number200247
EAN7320760200247
File Type Download
E5701/4X36NO3 — Line Drawing PDF Download
