E5703/8X32NO3
E5703/8X32NO3
E5703/8X32NO3

E5703/8X32NO3

UGC DOR5977465
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$44.90 CAD - $44.90 CAD
$44.90 CAD
$44.90 CAD - $44.90 CAD
$44.90 CAD

Vendu en lots de : 1

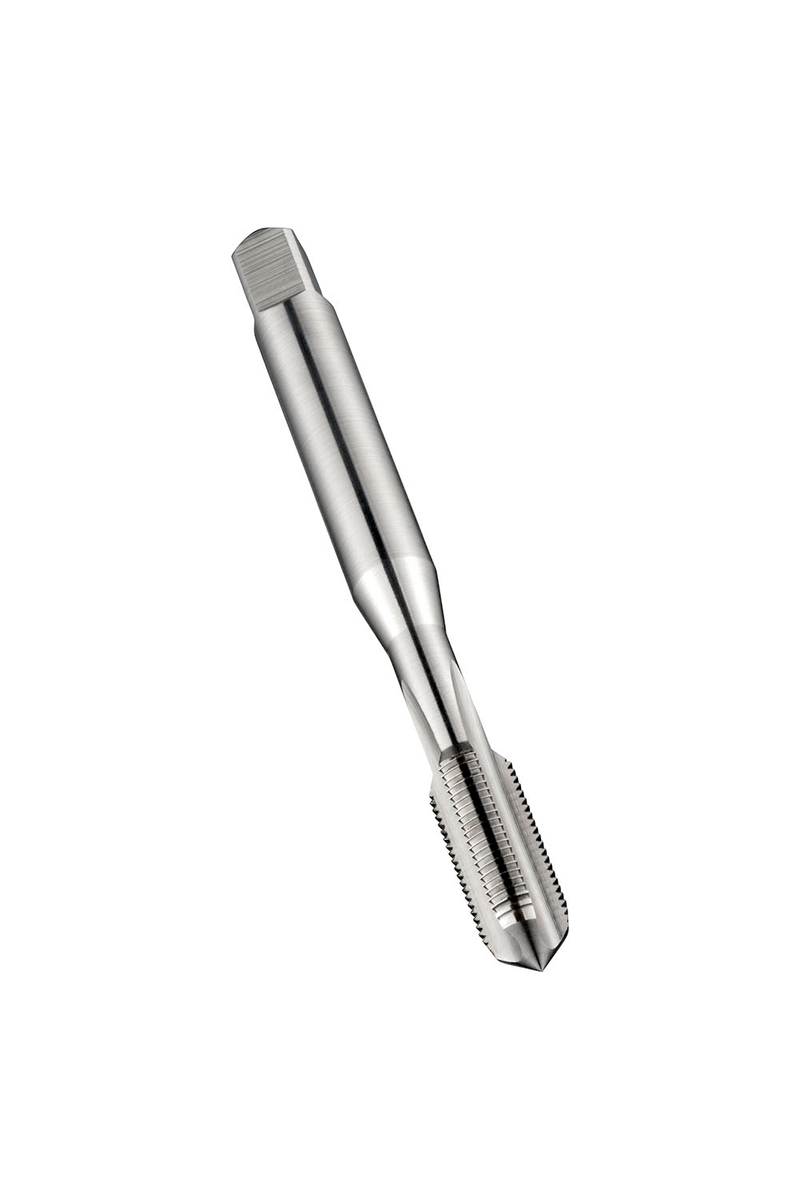

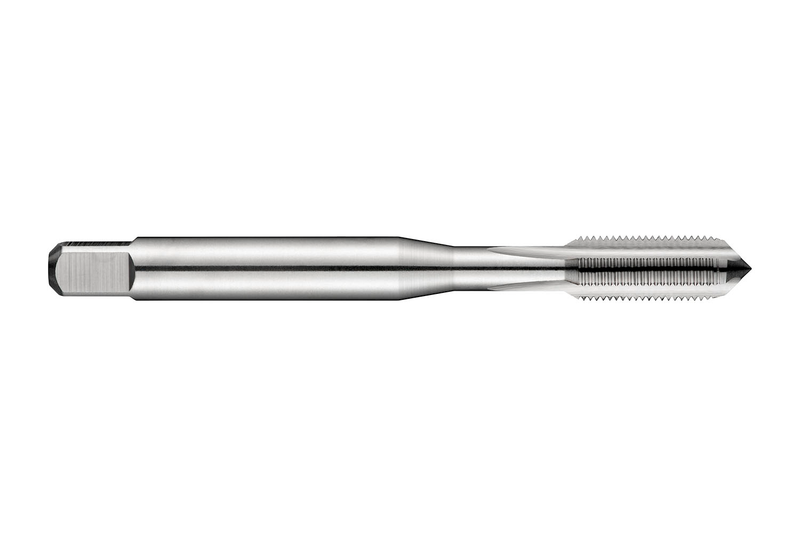

Taraud à main à coupe droite NO3 avec entrée courte (2-3 filets), pour filetage Unified National UN 3/8" avec 32 filets par pouce et tolérance 2B, dimensions selon la norme ISO 529 avec queue de 10,0mm et carré d'entraînement de 8,0mm, en HSS brillant pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans l'acier de décolletage, l'acier au carbone non allié et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5703/8X32NO3
GradeLumineux
Product Number5977465
Product FamilyE570
Dimensions
Overall Length — in (OAL)3.1496"
Overall Length — mm (OAL)80.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)1.2598"
Usable Length — mm (LU)32.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)3/8
Thread Diameter — in (TD)0.375"
Thread Diameter — mm (TD)9.525 mm
Thread Form (THFT)ONU - Unifié
Threads per Inch (TPI)32.0
Tool Information
ShankQueue cylindrique à carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number200292
EAN7320760200292
File Type Download
E5703/8X32NO3 — Line Drawing PDF Download
