E5707/8X20NO3
E5707/8X20NO3
E5707/8X20NO3

E5707/8X20NO3

UGC DOR5977470
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$195.94 CAD - $195.94 CAD
$195.94 CAD
$195.94 CAD - $195.94 CAD
$195.94 CAD

Vendu en lots de : 1

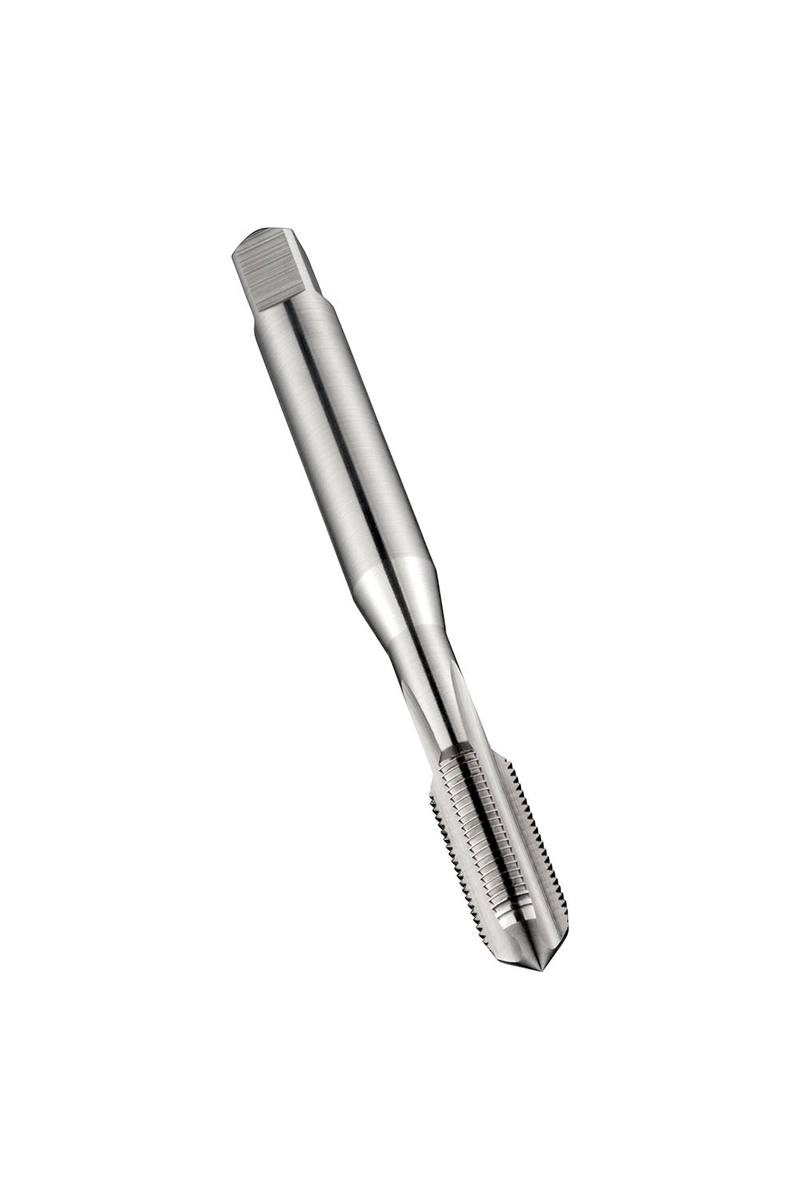

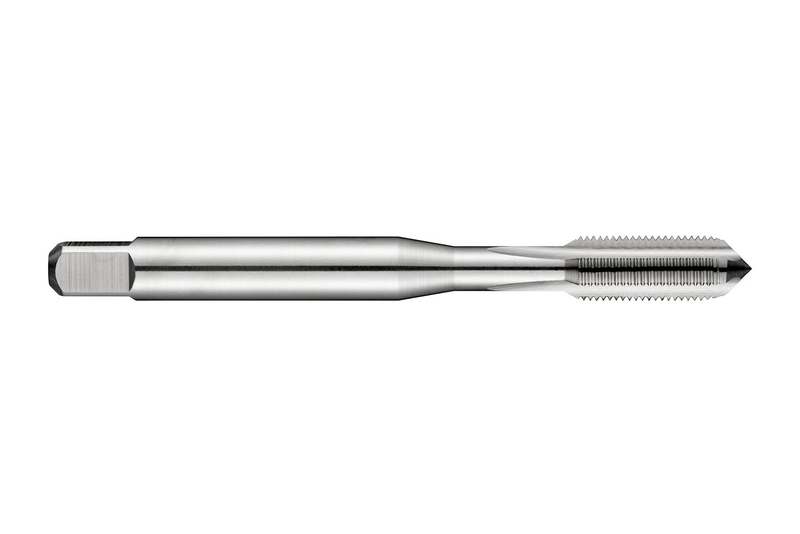

Taraud à main à coupe droite NO3, entrée béquille 2-3xP, pour filetage Unified National UN 7/8" avec 20 filets par pouce et classe de tolérance 2B, dimensions conformes à la norme ISO 529 avec queue de 16,0 mm et carré d'entraînement de 12,5 mm, en HSS avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans l'acier de décolletage, l'acier au carbone non allié, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5707/8X20NO3
GradeLumineux
Product Number5977470
Product FamilyE570
Dimensions
Overall Length — in (OAL)4.6457"
Overall Length — mm (OAL)118.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)7/8
Thread Diameter — in (TD)0.875"
Thread Diameter — mm (TD)22.225 mm
Thread Form (THFT)NU - Unifié
Threads per Inch (TPI)20.0
Tool Information
ShankTige cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number200698
EAN7320760200698
File Type Download
E5707/8X20NO3 — Line Drawing PDF Download
