E7113/8
E7113/8
E7113/8

E7113/8

UGC DOR5977542
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$80.39 CAD - $80.39 CAD
$80.39 CAD
$80.39 CAD - $80.39 CAD
$80.39 CAD

Vendu en lots de : 1

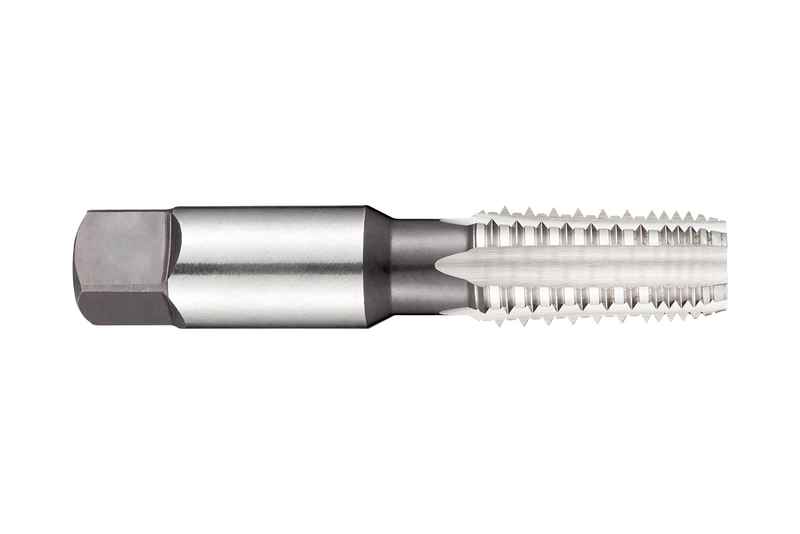

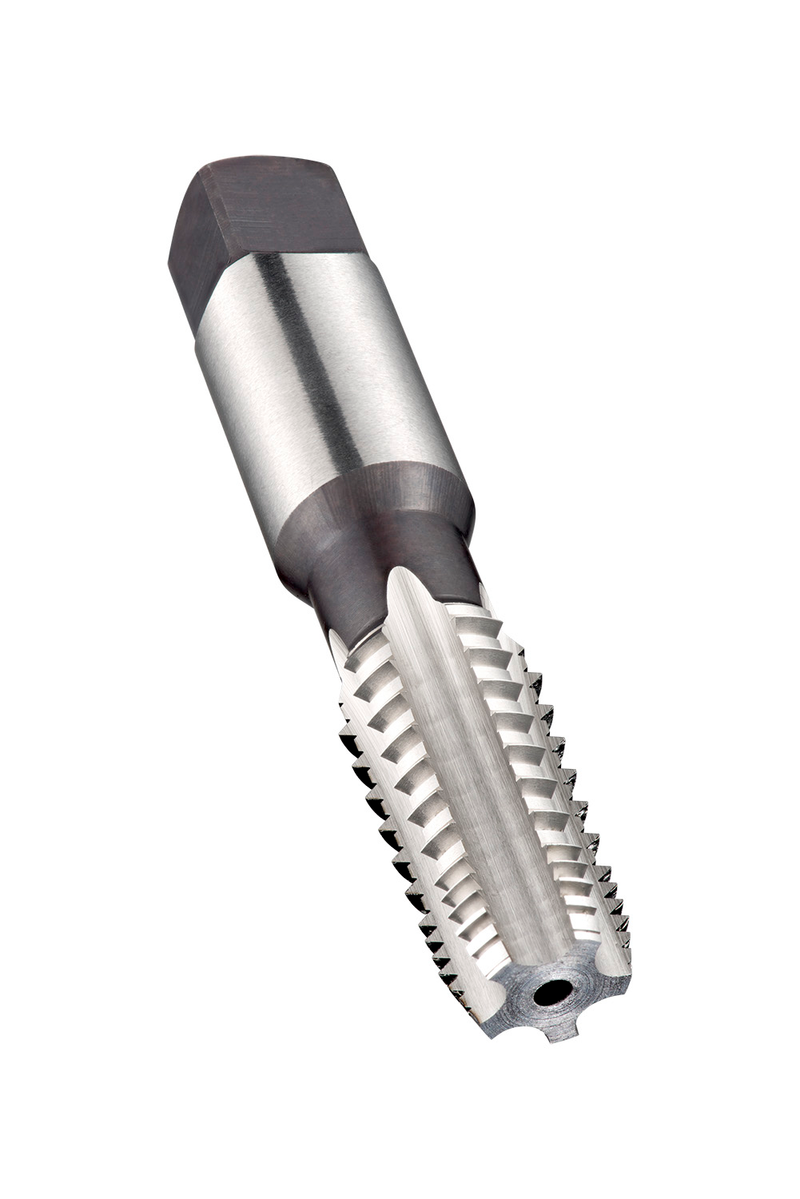

Taraud droit à forme d’entrée C avec attaque de 2 à 3 filets, pour filetage NPT 3/8" avec 18 filets au pouce et classe de tolérance normale, dimensions conformes à la norme ~ANSI B94.9, queue de 17,8 mm et carré d'entraînement de 13,5 mm, en HSS avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans l'acier allié

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E7113/8
GradeLumineux
Product Number5977542
Product FamilyE711

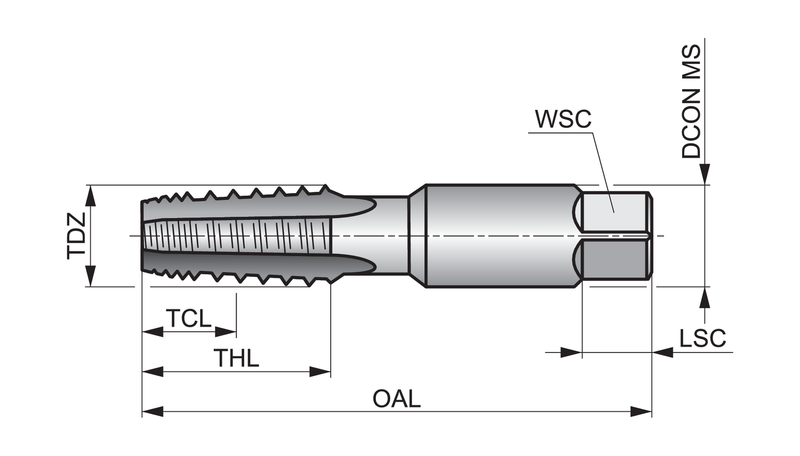

Dimensions
Overall Length — in (OAL)3.1496"
Overall Length — mm (OAL)80.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.7008"
Connection Dia. — mm (DCON)17.8 mm
Number of Flutes (NOF)5
Threading
Thread Diameter Size (TDZ)3/8
Thread Diameter — in (TD)0.6752"
Thread Diameter — mm (TD)17.15 mm
Thread Form (THFT)NPT - National Pipe Taper
Threads per Inch (TPI)18.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
Standard~ANSI B94.9
Reference Numbers
EDP Number99971
EAN7320760099971
File Type Download
E7113/8 — Line Drawing PDF Download
