E7081
E7081
E7081

E7081

UGC DOR5977549
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$201.19 CAD - $201.19 CAD
$201.19 CAD
$201.19 CAD - $201.19 CAD
$201.19 CAD

Vendu en lots de : 1

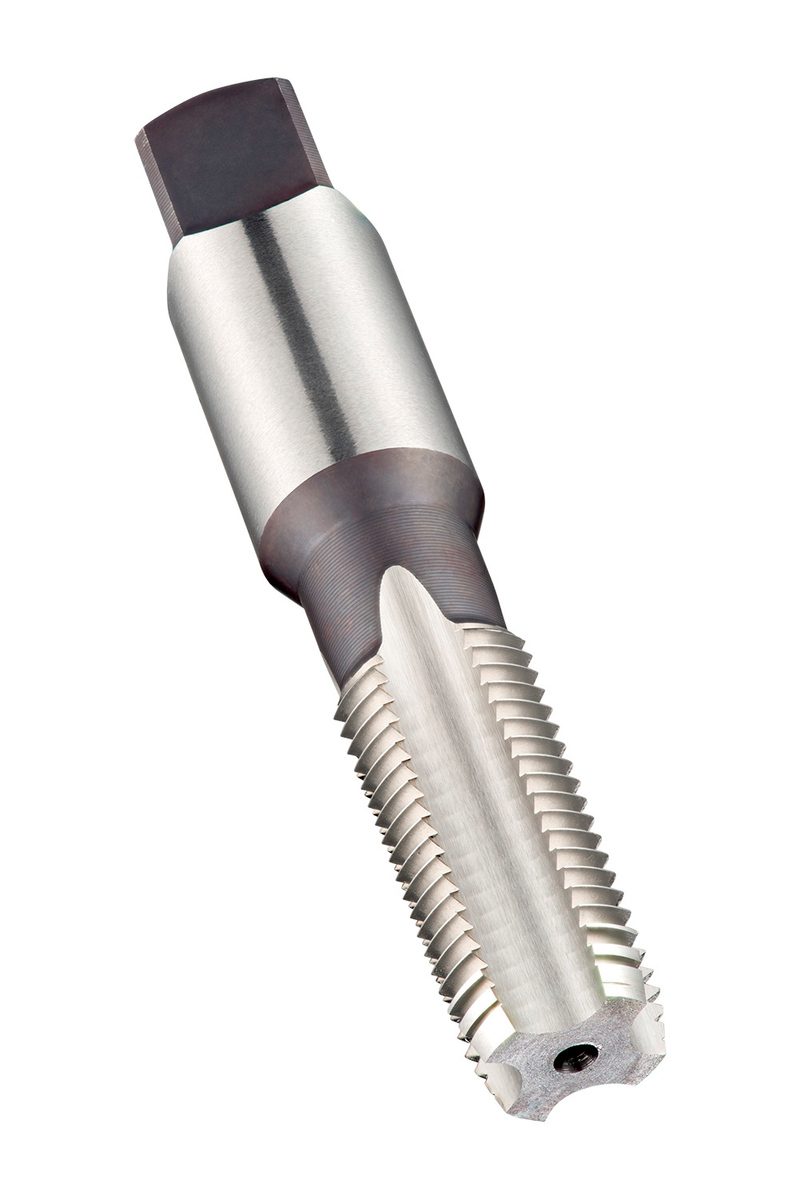

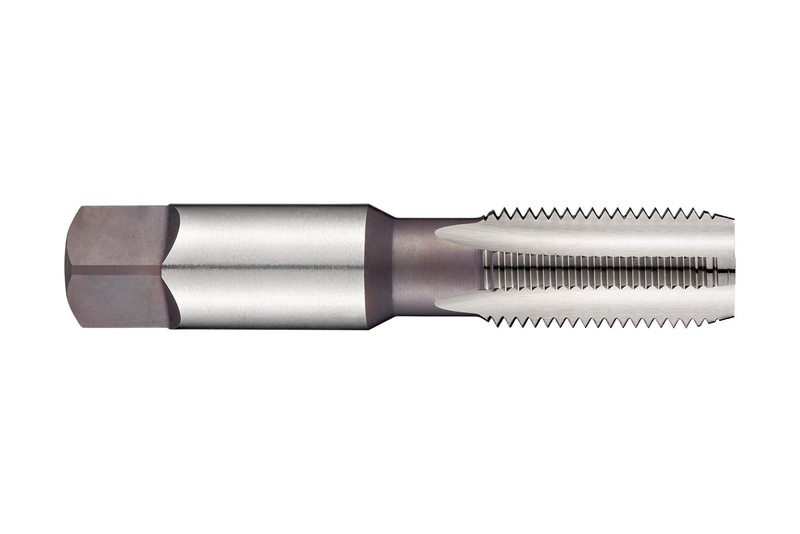

Taraud droit avec chanfrein forme C et entrée progressive 2-3xP, pour filetage National Pipe Straight pour joints mécaniques NPSM1" avec 11,5 filets par pouce et classe de tolérance normale, dimensions selon la norme ~ANSI B94.9 avec queue de 28,6 mm et carré d'entraînement de 21,4 mm, en HSS avec finition brillante pour le taraudage de trous traversants ou borgnes jusqu'à 1,5xD dans les aciers à usinage facile, les aciers alliés, le cuivre et les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E7081
GradeLumineux
Product Number5977549
Product FamilyE708

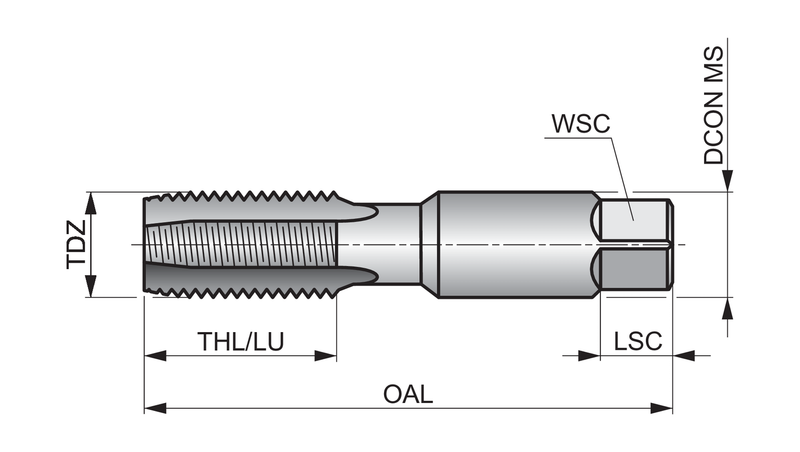

Dimensions
Overall Length — in (OAL)4.5276"
Overall Length — mm (OAL)115.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)1.126"
Connection Dia. — mm (DCON)28.6 mm
Number of Flutes (NOF)5
Threading
Thread Diameter Size (TDZ)1"
Thread Diameter — in (TD)1.315"
Thread Diameter — mm (TD)33.4 mm
Thread Form (THFT)NPSM - National pipe straight mechanical
Threads per Inch (TPI)11.5
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
Standard~ANSI B94.9
Reference Numbers
EDP Number99728
EAN7320760099728
File Type Download
E7081 — Line Drawing PDF Download
