E7141/2
E7141/2
E7141/2

E7141/2

UGC DOR5977552
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$131.40 CAD - $131.40 CAD
$131.40 CAD
$131.40 CAD - $131.40 CAD
$131.40 CAD

Vendu en lots de : 1

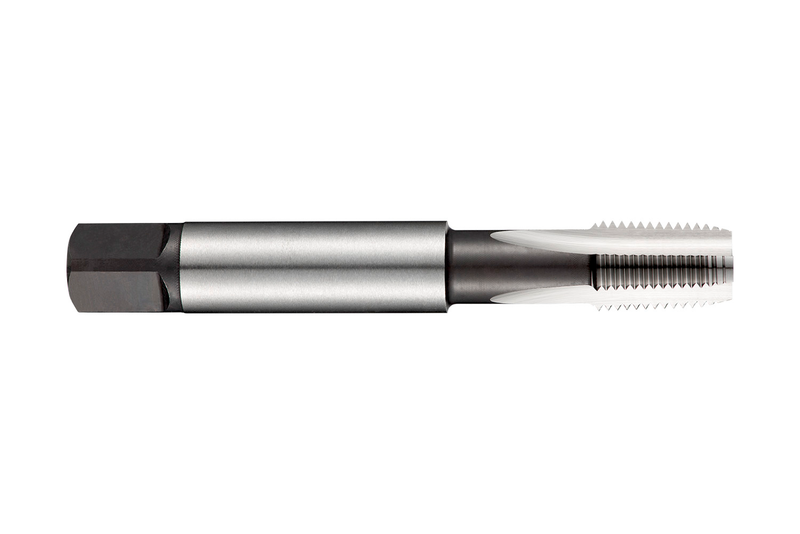

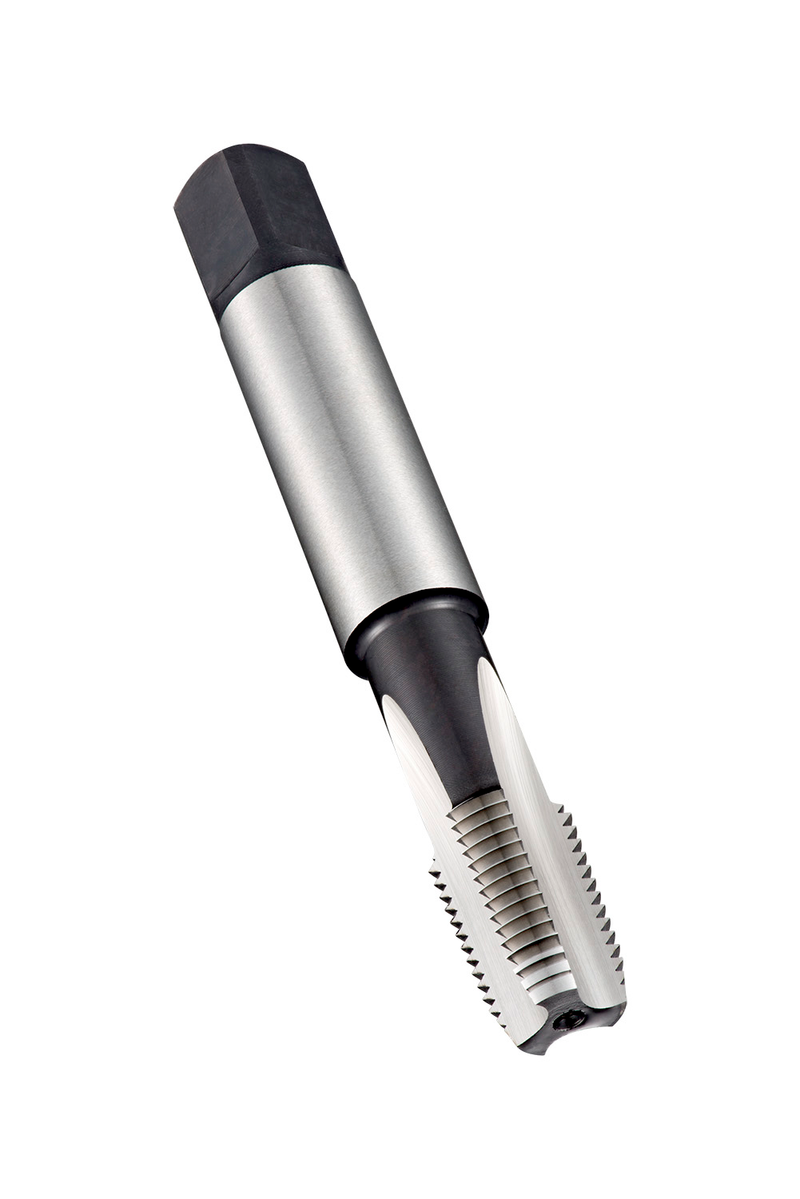

Taraud droit avec chanfrein forme C et entrée 2-3xP, pour filetage conique NPT 1/2" avec 14 TPI et classe de tolérance normale, dimensions selon la norme DORMER-ANSI avec queue de 18,0 mm et carré d'entraînement de 14,5 mm, en HSS-E métallurgie des poudres avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers à usinage facile, les aciers au carbone et alliés, ainsi que le cuivre et les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E7141/2
GradeLumineux
Product Number5977552
Product FamilyE714
Dimensions
Overall Length — in (OAL)4.9213"
Overall Length — mm (OAL)125.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.7087"
Connection Dia. — mm (DCON)18.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)1/2
Thread Diameter — in (TD)0.8346"
Thread Diameter — mm (TD)21.2 mm
Thread Form (THFT)NPT - Filetage national conique
Threads per Inch (TPI)14.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number127636
EAN7320760127636
File Type Download

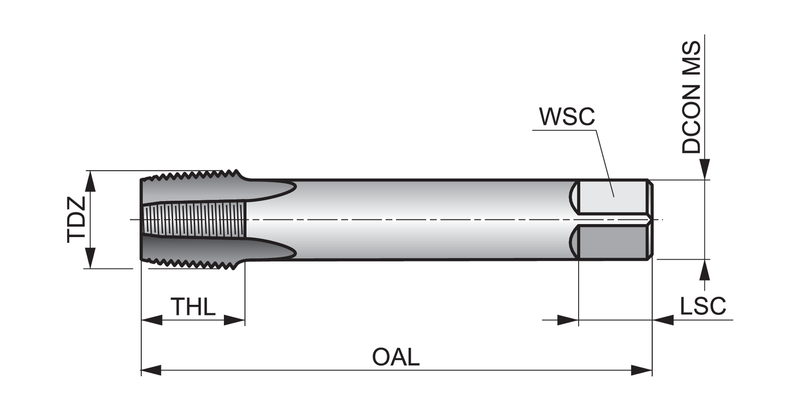

E7141/2 — Line Drawing PDF Download
