E7141/4
E7141/4
E7141/4

E7141/4

UGC DOR5977556
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$81.34 CAD - $81.34 CAD
$81.34 CAD
$81.34 CAD - $81.34 CAD
$81.34 CAD

Vendu en lots de : 1

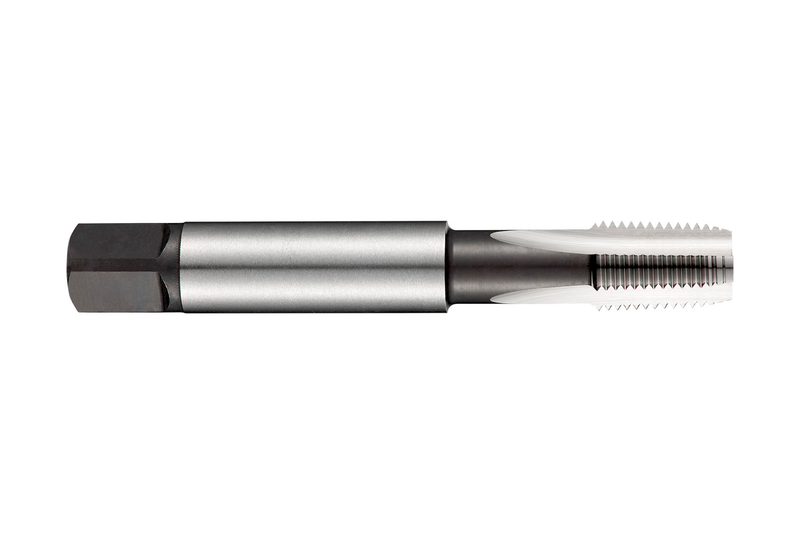

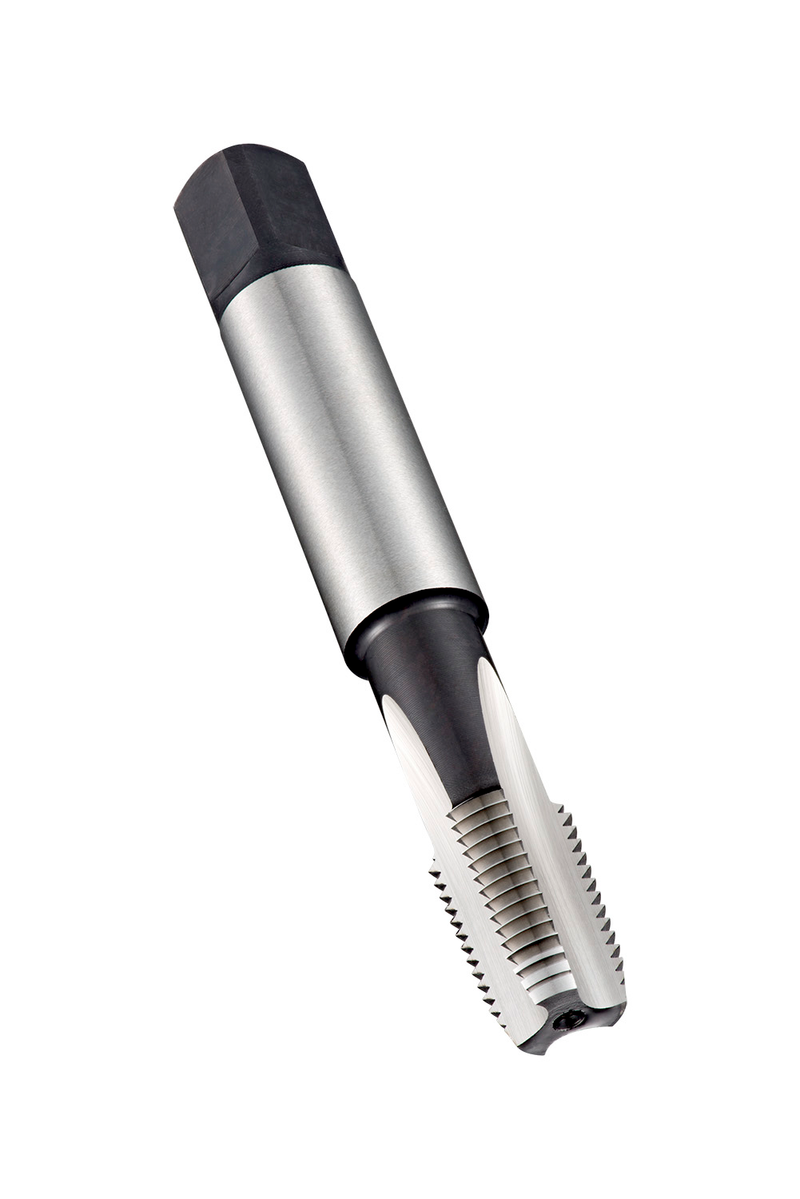

Taraud droit forme C avec entrée 2-3xP, pour filetages NPT 1/4" de 18 filets au pouce avec tolérance normale, dimensions selon standard DORMER-ANSI avec queue de 14,0mm et carré d'entraînement de 11,0mm, en HSS-E (acier rapide fritté) avec finition brillante pour le filetage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage, aciers au carbone, aciers alliés, et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E7141/4
GradeLumineux
Product Number5977556
Product FamilyE714

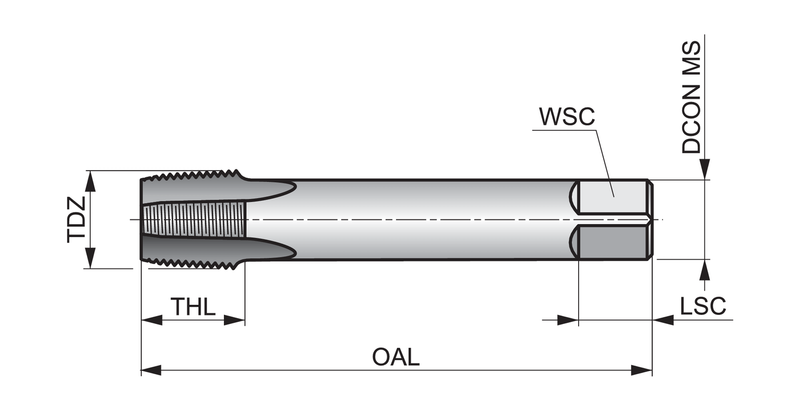

Dimensions
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)1/4
Thread Diameter — in (TD)0.5354"
Thread Diameter — mm (TD)13.6 mm
Thread Form (THFT)NPT - Filetage conique national
Threads per Inch (TPI)18.0
Tool Information
ShankQueue cylindrique à carré d'entraînement
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number127643
EAN7320760127643
File Type Download
E7141/4 — Line Drawing PDF Download
