E7081/8
E7081/8
E7081/8

E7081/8

UGC DOR5977560
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$41.94 CAD - $41.94 CAD
$41.94 CAD
$41.94 CAD - $41.94 CAD
$41.94 CAD

Vendu en lots de : 1

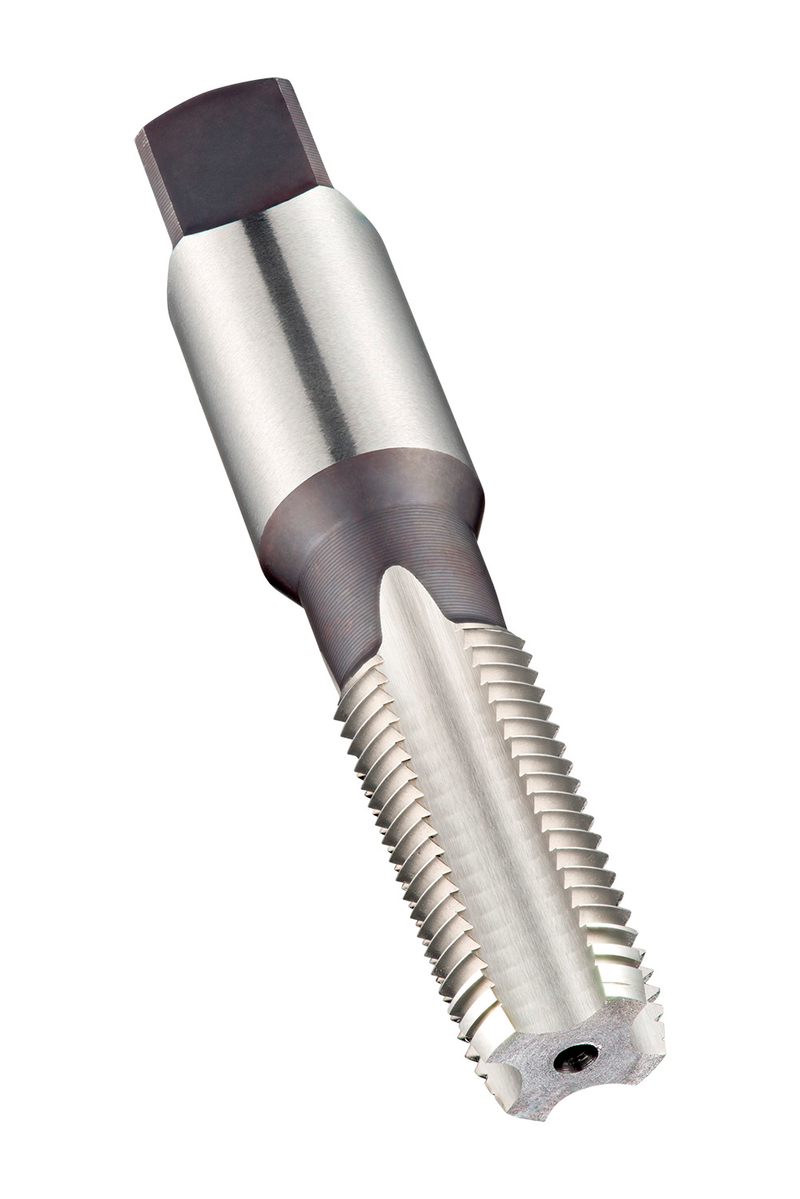

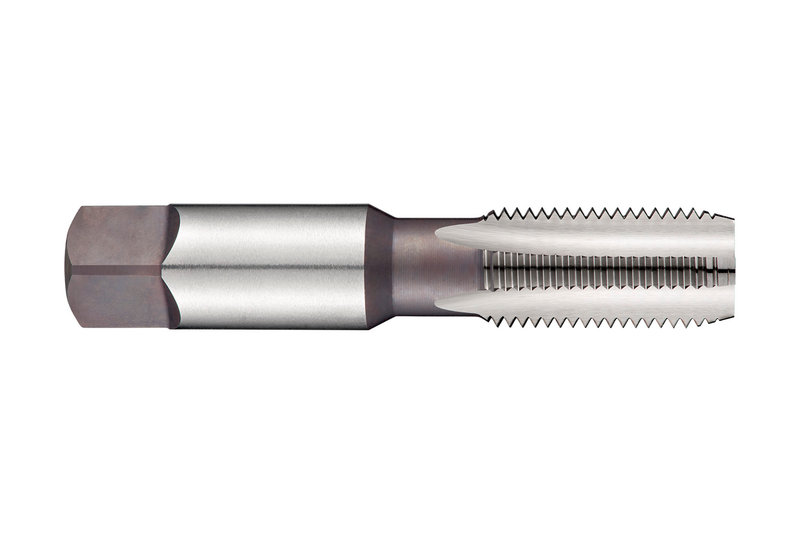

Taraud droit forme C avec entrée 2-3xP, pour filetage National Pipe Straight (NPSM) 1/8" avec 27 filets par pouce et classe de tolérance Normale, dimensions conformes à la norme ~ANSI B94.9, queue de 11,1mm et carré d'entraînement de 8,3mm, HSS finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers doux et alliés, le cuivre et les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E7081/8
GradeLumineux
Product Number5977560
Product FamilyE708
Dimensions
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)0.748"
Usable Length — mm (LU)19.0 mm
Connection Dia. — in (DCON)0.437"
Connection Dia. — mm (DCON)11.1 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)1/8
Thread Diameter — in (TD)0.4051"
Thread Diameter — mm (TD)10.29 mm
Thread Form (THFT)NPSM - National pipe straight mechanical
Threads per Inch (TPI)27.0
Tool Information
ShankQueue cylindrique avec Carré
Direction of ToolD'accord
Standard~ANSI B94.9
Reference Numbers
EDP Number99759
EAN7320760099759
File Type Download

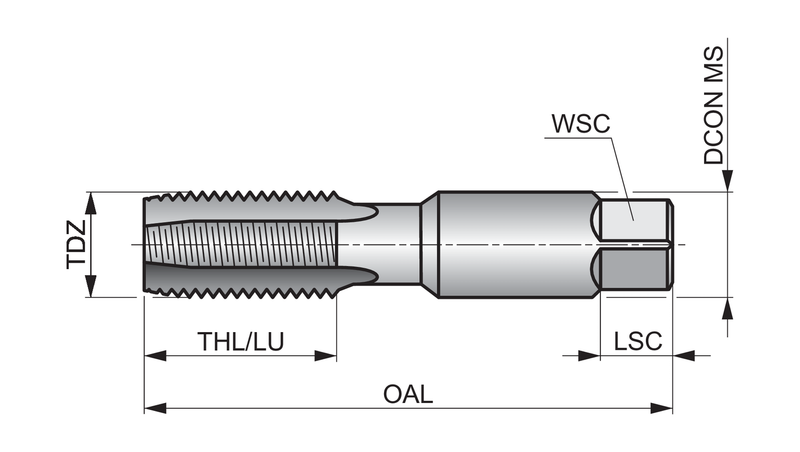

E7081/8 — Line Drawing PDF Download
