E7201/2NO3
E7201/2NO3
E7201/2NO3

E7201/2NO3

UGC DOR5977570
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$131.53 CAD - $131.53 CAD
$131.53 CAD
$131.53 CAD - $131.53 CAD
$131.53 CAD

Vendu en lots de : 1

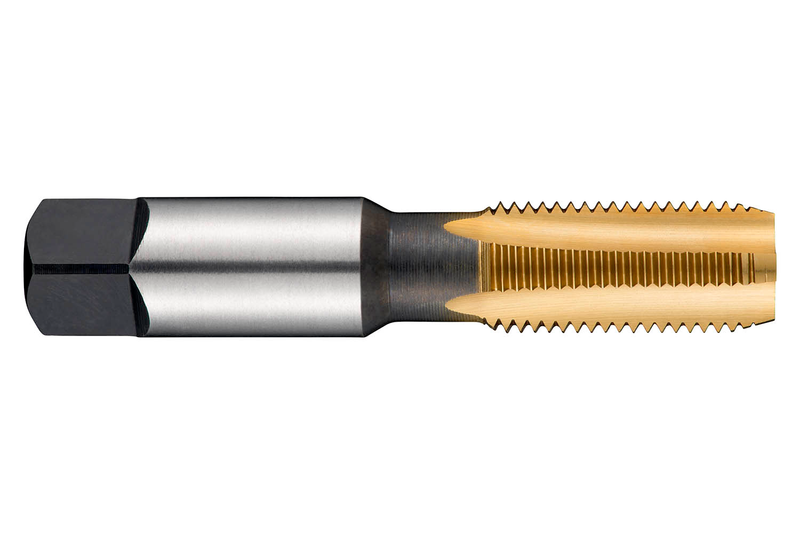

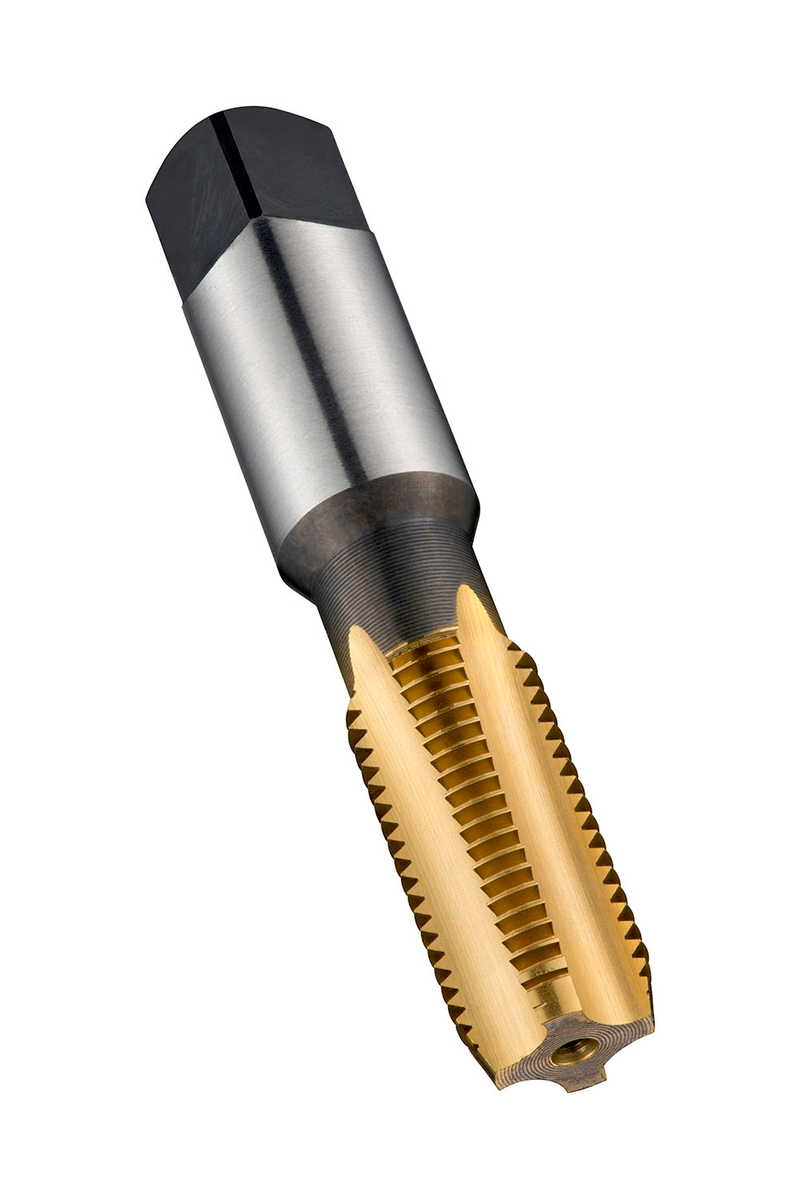

Taraud droit NO3 avec entrée courte 2-3xP, pour filetage (Dryseal) National Pipe Straight thread for Fuel lines NPSF 1/2" avec 14 filets par pouce et jeu normal, dimensions conformes à la norme ~ANSI B94.9 avec queue de 17,5mm et carré d'entraînement de 13,1mm, HSS avec revêtement TiN pour taraudage de trous débouchants ou borgnes de 1,5xD dans l'acier allié, la fonte et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E7201/2NO3
GradeTiN
Product Number5977570
Product FamilyE720

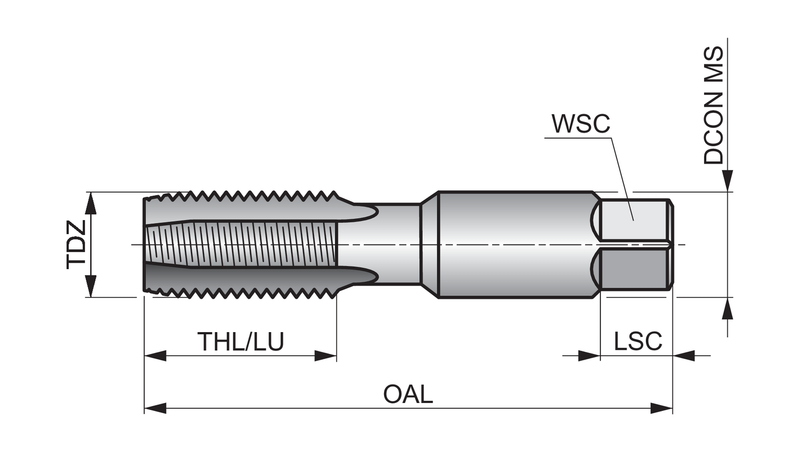

Dimensions
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.689"
Connection Dia. — mm (DCON)17.5 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)1/2
Thread Diameter — in (TD)0.8402"
Thread Diameter — mm (TD)21.34 mm
Thread Form (THFT)NPSF - Tuyau droit national de carburant
Threads per Inch (TPI)14.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
Standard~ANSI B94.9
Reference Numbers
EDP Number161555
EAN7320760161555
File Type Download
E7201/2NO3 — Line Drawing PDF Download
