E7201/4NO3
E7201/4NO3
E7201/4NO3

E7201/4NO3

UGC DOR5977573
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$72.10 CAD - $72.10 CAD
$72.10 CAD
$72.10 CAD - $72.10 CAD
$72.10 CAD

Vendu en lots de : 1

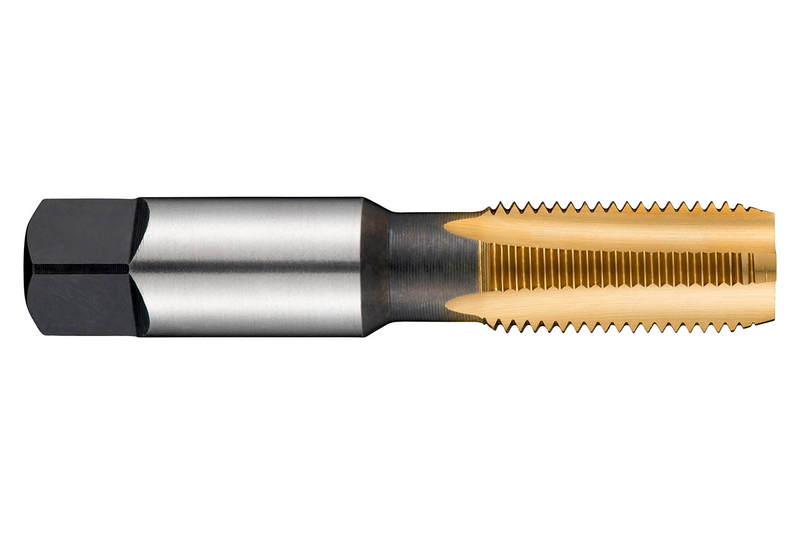

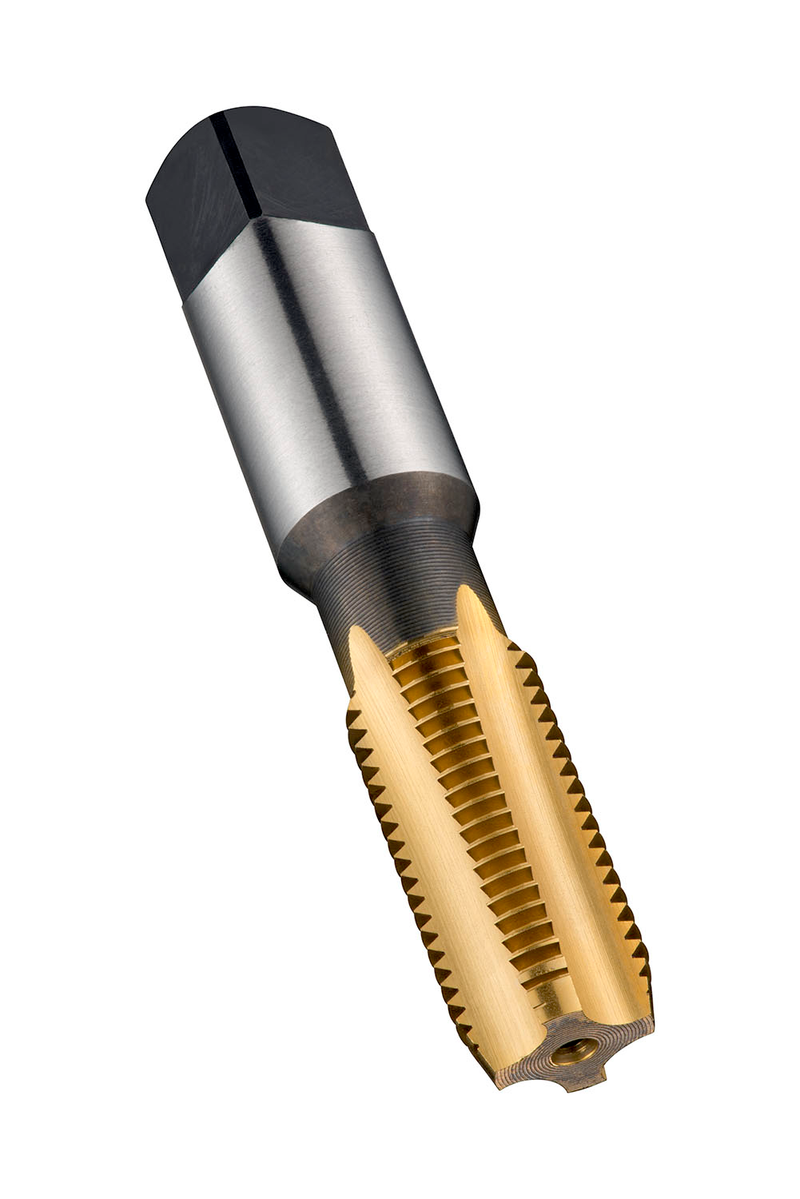

Taraud droit NO3 avec entrée de 2-3 filets, pour filetage National Pipe Straight (Dryseal) pour conduites de carburant NPSF 1/4" avec 18 filets par pouce et classe de tolérance normale, dimensions selon la norme ~ANSI B94.9 avec queue de 14,3 mm et carré d'entraînement de 10,7 mm, en HSS avec revêtement TiN pour le filetage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers alliés, la fonte et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E7201/4NO3
GradeTiN
Product Number5977573
Product FamilyE720

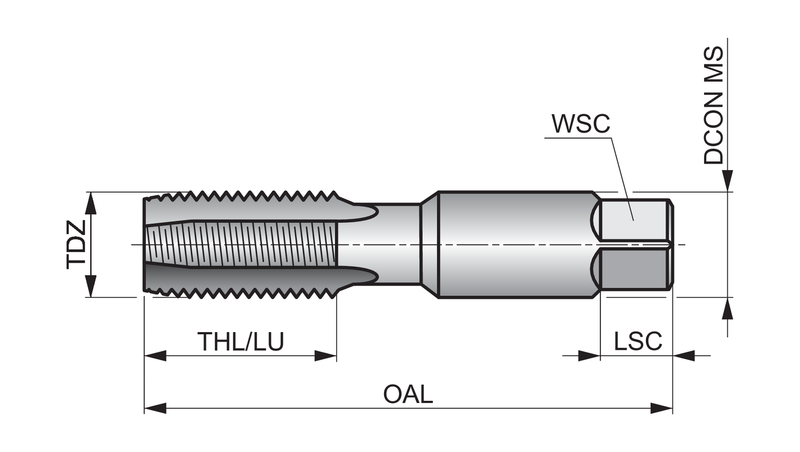

Dimensions
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)1.063"
Usable Length — mm (LU)27.0 mm
Connection Dia. — in (DCON)0.563"
Connection Dia. — mm (DCON)14.3 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)1/4
Thread Diameter — in (TD)0.5402"
Thread Diameter — mm (TD)13.72 mm
Thread Form (THFT)NPSF - National straight pipe fuel
Threads per Inch (TPI)18.0
Tool Information
ShankTige cylindrique avec carré d'entraînement
Direction of ToolD'accord
Standard~ANSI B94.9
Reference Numbers
EDP Number161531
EAN7320760161531
File Type Download
E7201/4NO3 — Line Drawing PDF Download
