E7201/8NO3
E7201/8NO3
E7201/8NO3

E7201/8NO3

UGC DOR5977577
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$60.90 CAD - $60.90 CAD
$60.90 CAD
$60.90 CAD - $60.90 CAD
$60.90 CAD

Vendu en lots de : 1

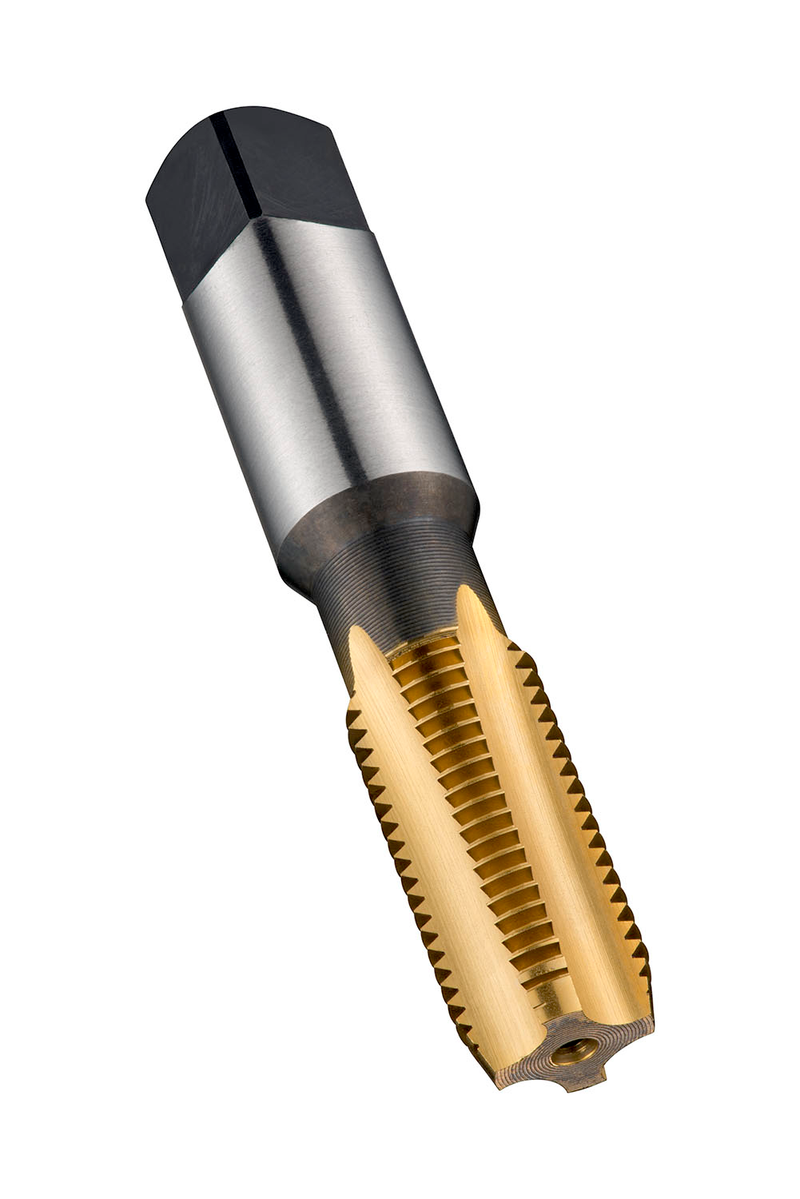

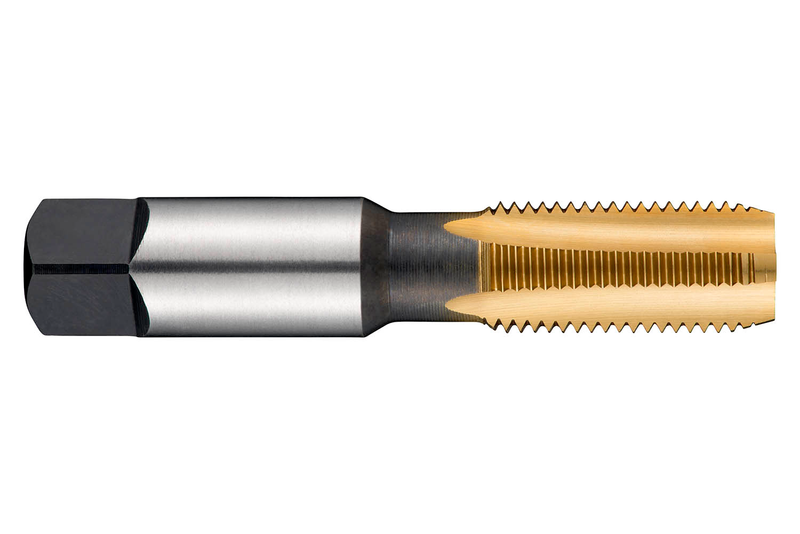

Taraud droit NO3 avec entrée de 2 à 3 filets, pour filetage national de tuyauterie droite (Dryseal) pour conduites de carburant NPSF 1/8" avec 27 filets par pouce et ajustement normal, dimensions selon la norme ~ANSI B94.9 avec queue de 11,1 mm et carré d'entraînement de 8,3 mm, HSS avec revêtement TiN pour le taraudage de trous traversants ou borgnes de 1,5xD dans l'acier allié, la fonte et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E7201/8NO3
GradeTiN
Product Number5977577
Product FamilyE720

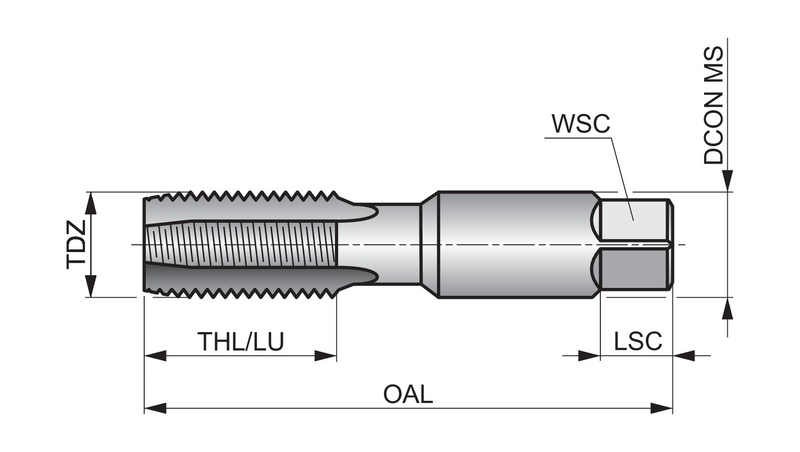

Dimensions
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)0.748"
Usable Length — mm (LU)19.0 mm
Connection Dia. — in (DCON)0.437"
Connection Dia. — mm (DCON)11.1 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)1/8
Thread Diameter — in (TD)0.4051"
Thread Diameter — mm (TD)10.29 mm
Thread Form (THFT)NPSF - National straight pipe fuel
Threads per Inch (TPI)27.0
Tool Information
ShankQueue cylindrique avec carré d'entraînement
Direction of ToolD'accord
Standard~ANSI B94.9
Reference Numbers
EDP Number161524
EAN7320760161524
File Type Download
E7201/8NO3 — Line Drawing PDF Download
