E7091/4
E7091/4
E7091/4

E7091/4

UGC DOR5977582
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$46.43 CAD - $46.43 CAD
$46.43 CAD
$46.43 CAD - $46.43 CAD
$46.43 CAD

Vendu en lots de : 1

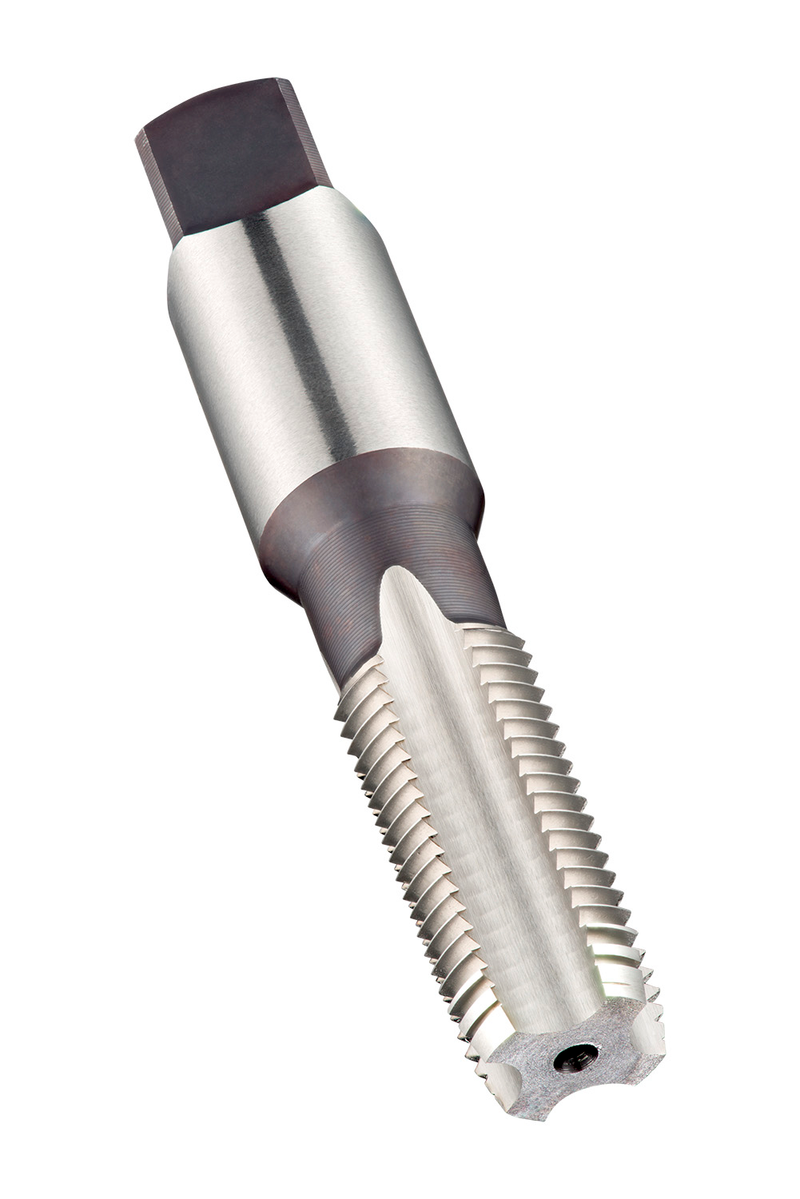

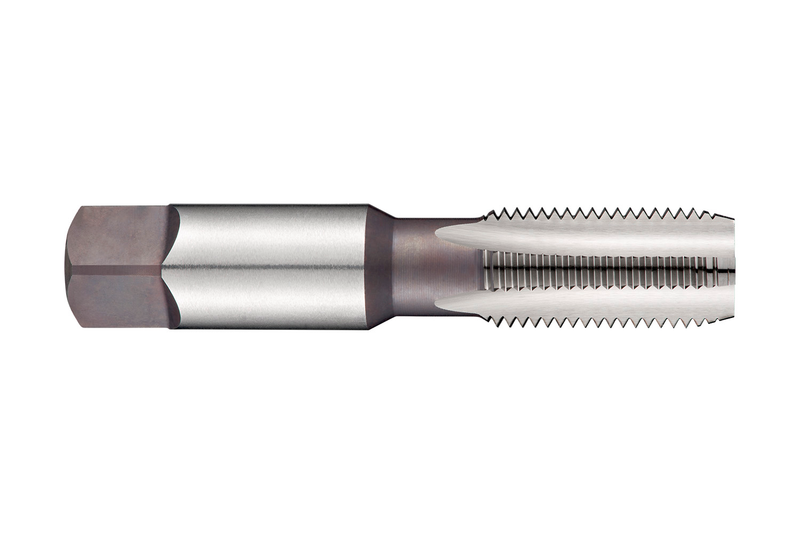

Taraud droit forme C avec entrée 2-3xP, pour le filetage américain pour conduites de carburant (Dryseal) NPSF 1/4" avec 18 filets par pouce et classe de tolérance normale, dimensions selon la norme ~ANSI B94.9 avec queue de 14,3 mm et carré d'entraînement de 10,7 mm, en HSS finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers à usinage facile, aciers au carbone et alliés, cuivre ou alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E7091/4
GradeLumineux
Product Number5977582
Product FamilyE709

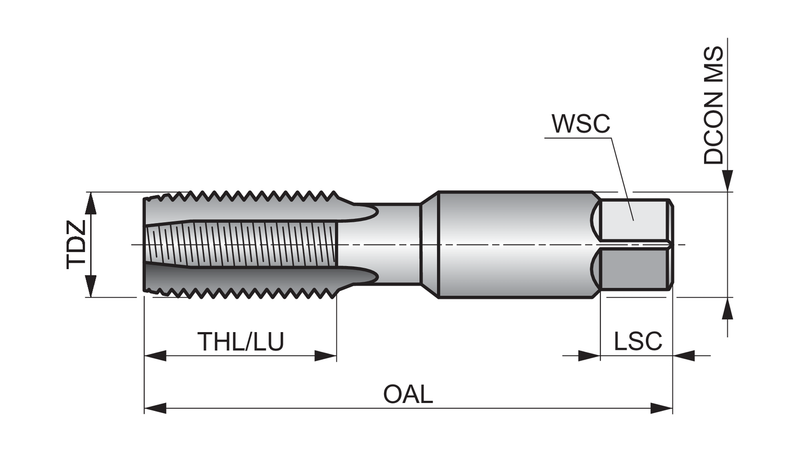

Dimensions
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)1.063"
Usable Length — mm (LU)27.0 mm
Connection Dia. — in (DCON)0.563"
Connection Dia. — mm (DCON)14.3 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)1/4
Thread Diameter — in (TD)0.5402"
Thread Diameter — mm (TD)13.72 mm
Thread Form (THFT)NPSF - National straight pipe fuel
Threads per Inch (TPI)18.0
Tool Information
ShankTige cylindrique avec carré d'entraînement
Direction of ToolD'accord
Standard~ANSI B94.9
Reference Numbers
EDP Number99797
EAN7320760099797
File Type Download
E7091/4 — Line Drawing PDF Download
