E7203/8NO3
E7203/8NO3
E7203/8NO3

E7203/8NO3

UGC DOR5977588
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$92.56 CAD - $92.56 CAD
$92.56 CAD
$92.56 CAD - $92.56 CAD
$92.56 CAD

Vendu en lots de : 1

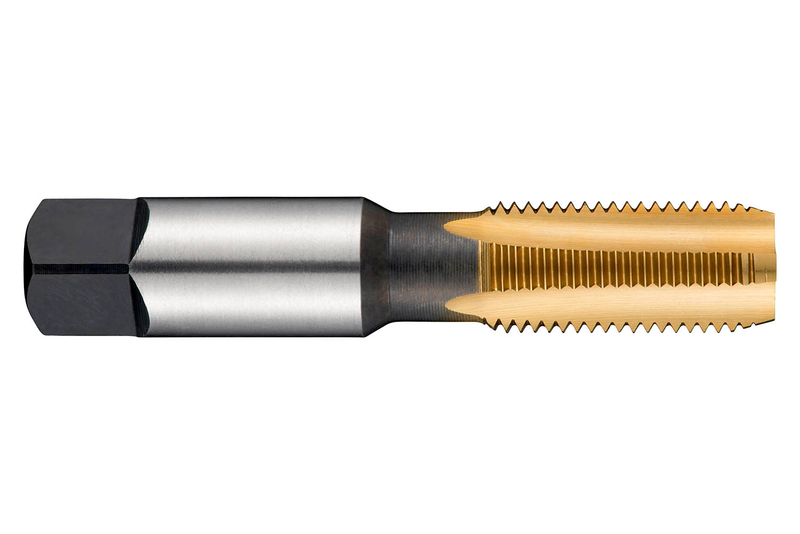

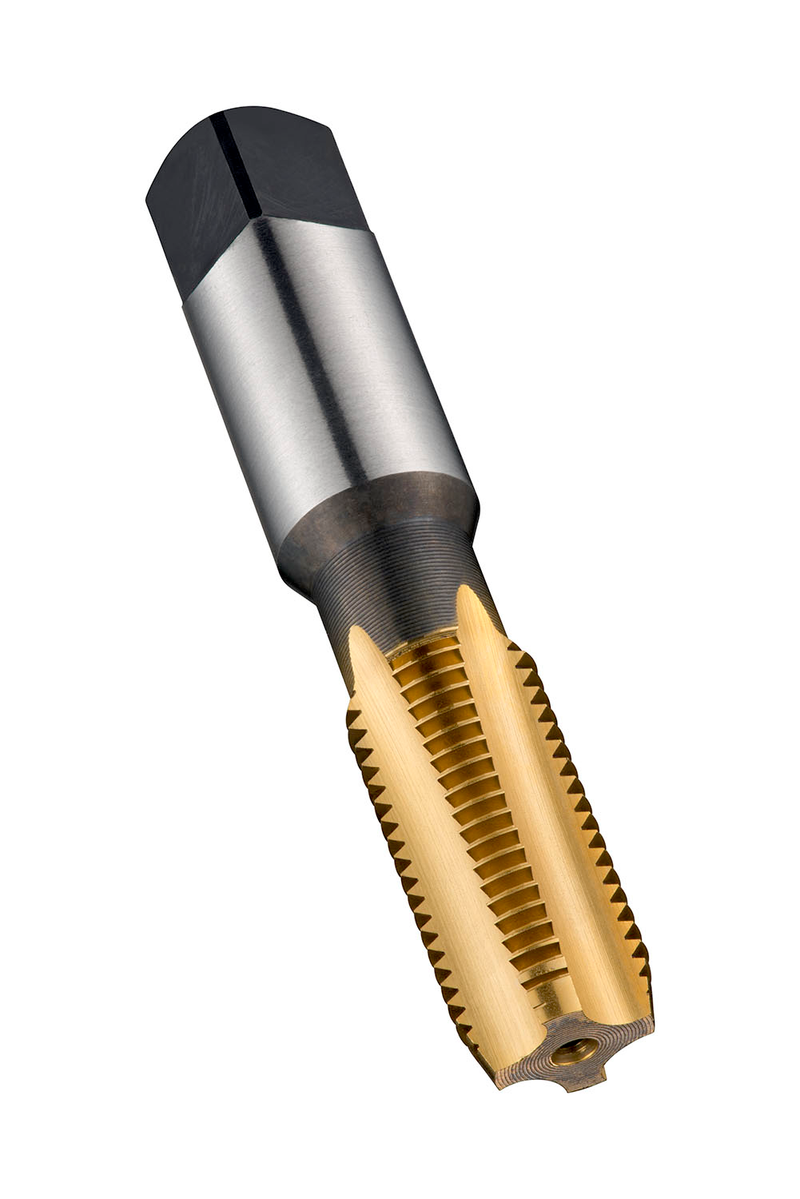

Taraud droit NO3 avec entrée courte 2-3xP, pour filetage de tuyauterie droite (Dryseal) NPSF 3/8" avec 18 filets par pouce et classe de tolérance normale, dimensions selon la norme ~ANSI B94.9 avec queue de 17,8 mm et carré d'entraînement de 13,5 mm, en HSS avec revêtement TiN pour le taraudage de trous débouchants ou borgnes jusqu'à 1.5xD dans l'acier allié, la fonte et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI)E7203/8NON
Product Name (ISO)E7203/8NE3
GradeTiN
Product Number5977588
Product FamilyE720

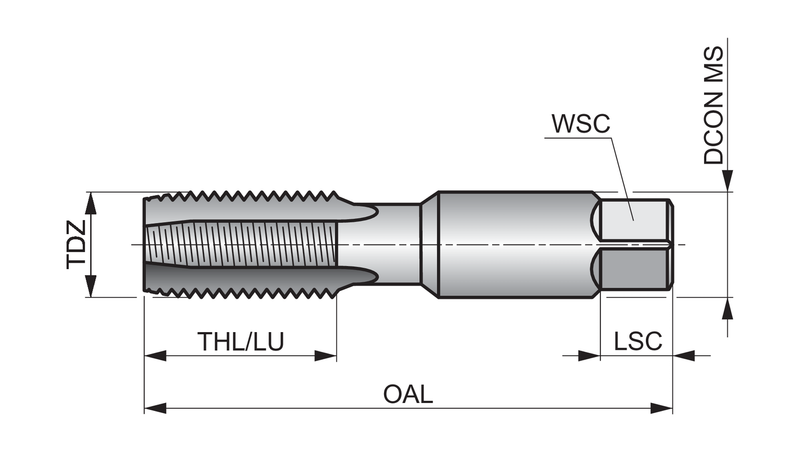

Dimensions
Overall Length — in (OAL)3.1496"
Overall Length — mm (OAL)80.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)1.063"
Usable Length — mm (LU)27.0 mm
Connection Dia. — in (DCON)0.7008"
Connection Dia. — mm (DCON)17.8 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)3/8
Thread Diameter — in (TD)0.6752"
Thread Diameter — mm (TD)17.15 mm
Thread Form (THFT)NPSF - Conduite droite pour le carburant national
Threads per Inch (TPI)18.0
Tool Information
ShankQueue cylindrique à carré d'entraînement
Direction of ToolD'accord
Standard~ANSI B94.9
Reference Numbers
EDP Number161548
EAN7320760161548
File Type Download
E7203/8NO3 — Line Drawing PDF Download
