UGC DOR5977590
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$40.59 CAD - $40.59 CAD
$40.59 CAD
$40.59 CAD - $40.59 CAD
$40.59 CAD

Vendu en lots de : 1

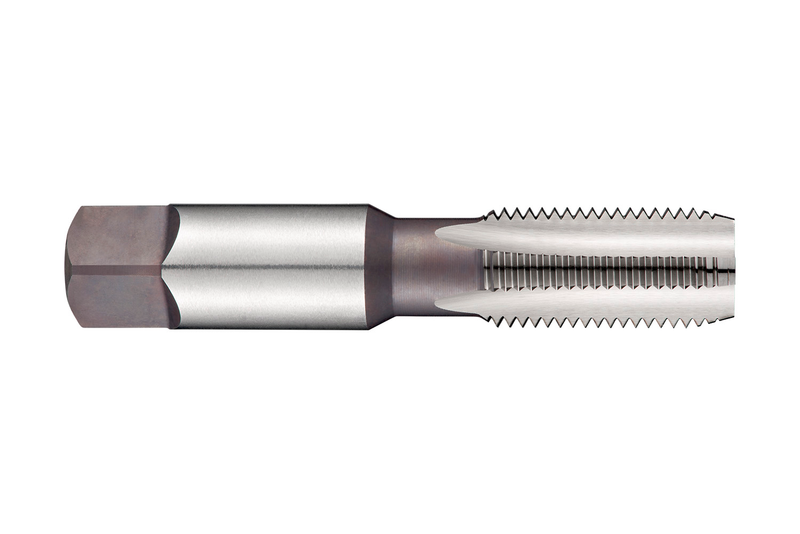

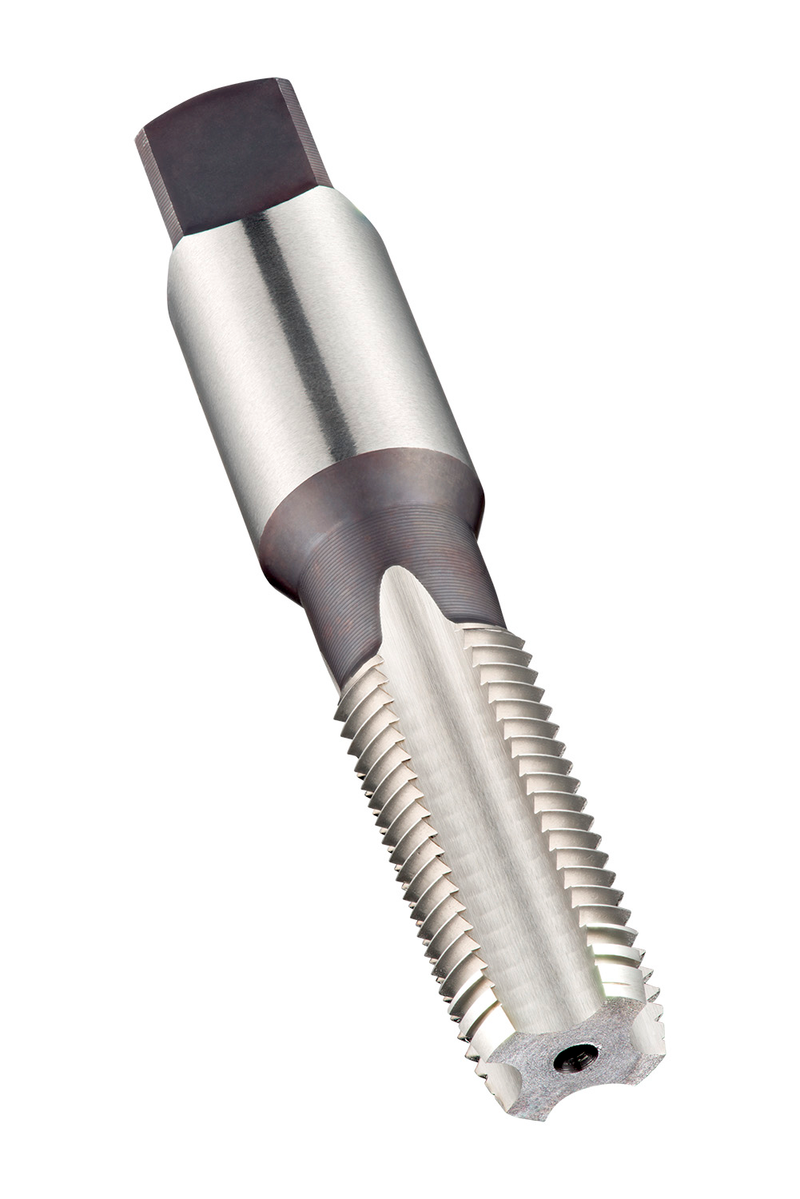

Taraud droit forme C avec entrée 2-3xP, pour filetage (Dryseal) National Pipe Straight pour conduites de carburant NPSF 1/8" avec 27 filets par pouce et classe de tolérance normale, dimensions selon la norme ~ANSI B94.9 avec queue de 11,1 mm et carré d'entraînement de 8,3 mm, HSS avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers à usinage facile, les aciers au carbone et alliés, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E7091/8
GradeLumineux
Product Number5977590
Product FamilyE709

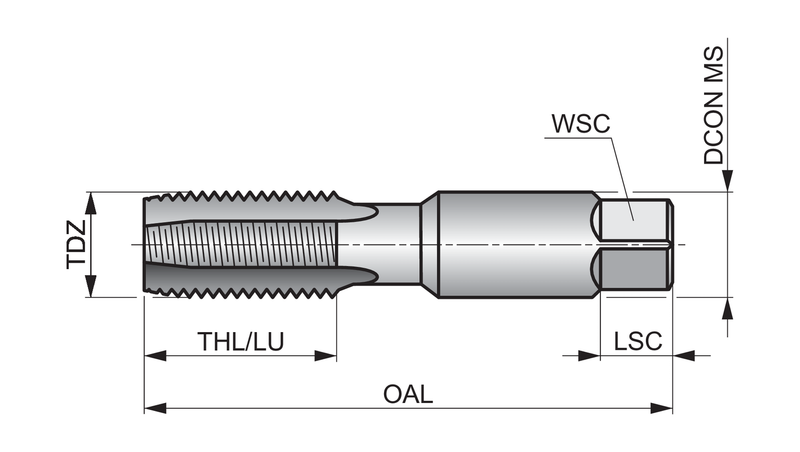

Dimensions
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)0.748"
Usable Length — mm (LU)19.0 mm
Connection Dia. — in (DCON)0.437"
Connection Dia. — mm (DCON)11.1 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)1/8
Thread Diameter — in (TD)0.4051"
Thread Diameter — mm (TD)10.29 mm
Thread Form (THFT)NPSF - Carburant à tuyau droit national
Threads per Inch (TPI)27.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
Standard~ANSI B94.9
Reference Numbers
EDP Number99803
EAN7320760099803
File Type Download
E7091/8 — Line Drawing PDF Download
