E7211/2
E7211/2
E7211/2

E7211/2

UGC DOR5977595
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$155.40 CAD - $155.40 CAD
$155.40 CAD
$155.40 CAD - $155.40 CAD
$155.40 CAD

Vendu en lots de : 1

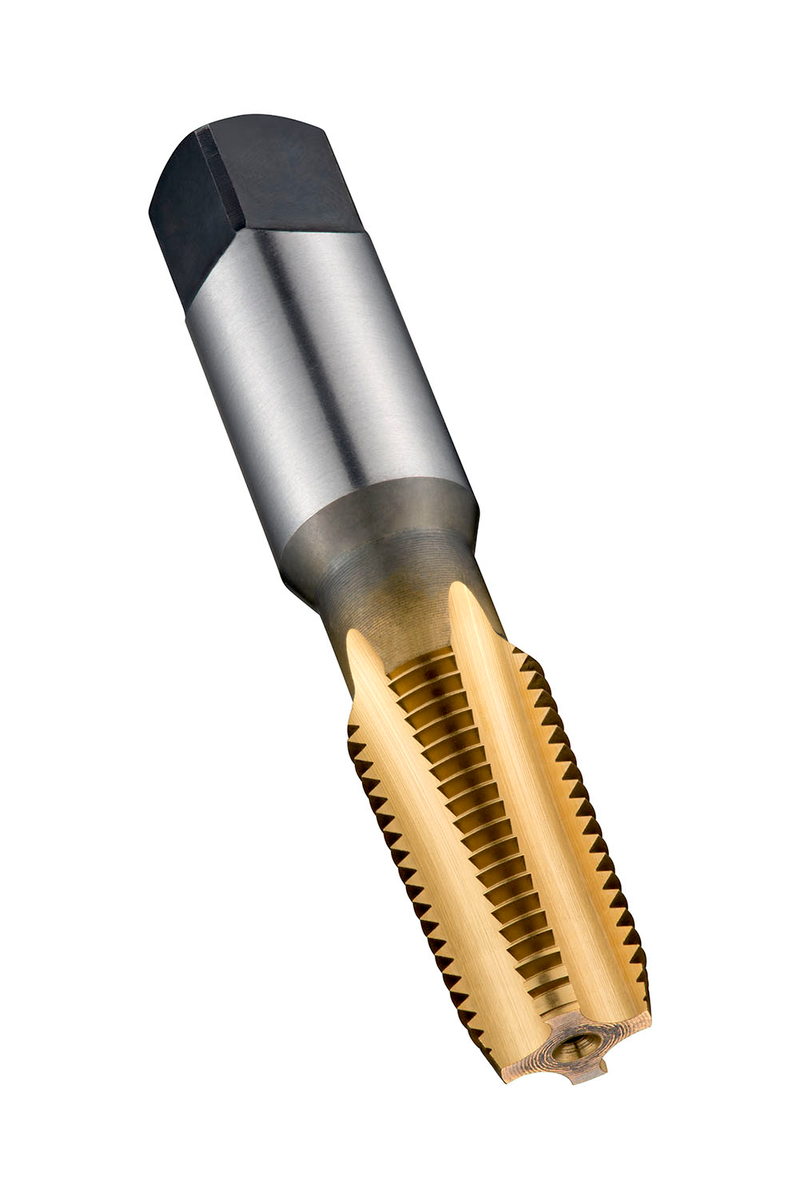

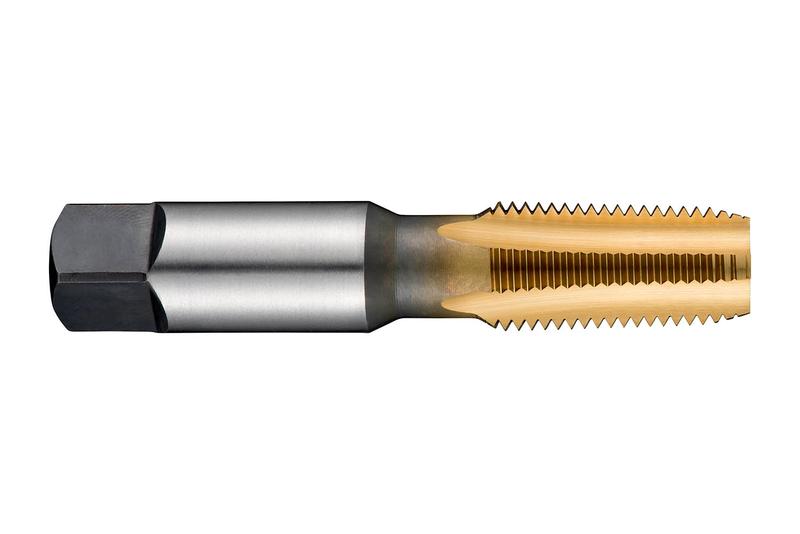

Taraud droit avec chanfrein forme C et entrée 2-3 filets (Plug), pour filetage National Pipe Taper NPT 1/2" avec 14 TPI et classe de tolérance normale, dimensions selon norme ANSI B94.9 avec queue de 17.5mm et carré d'entraînement de 13.1mm, HSS avec revêtement TiN pour le taraudage de trous débouchants ou borgnes jusqu'à 1.5xD dans les aciers de décolletage et les aciers à outils, la fonte et le cuivre ou ses alliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E7211/2
GradeTiN
Product Number5977595
Product FamilyE721
Dimensions
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.689"
Connection Dia. — mm (DCON)17.5 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)1/2
Thread Diameter — in (TD)0.8402"
Thread Diameter — mm (TD)21.34 mm
Thread Form (THFT)NPT - Filetage national conique
Threads per Inch (TPI)14.0
Tool Information
ShankTige cylindrique avec carré d'entraînement
Direction of ToolD'accord
Standard~ANSI B94.9
Reference Numbers
EDP Number161494
EAN7320760161494
File Type Download

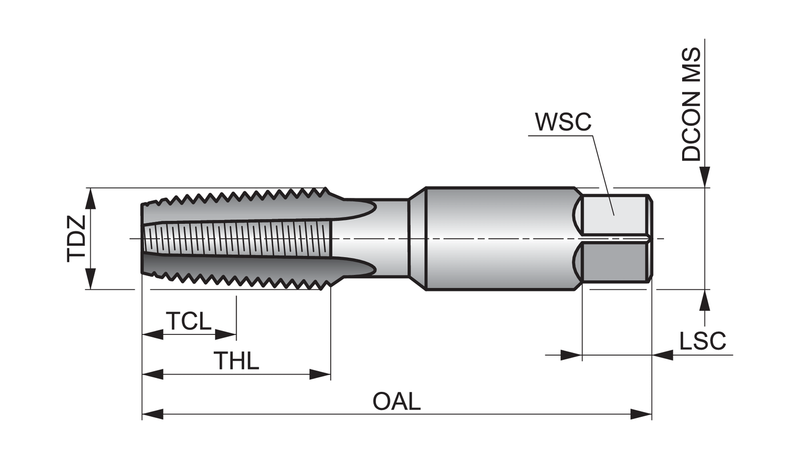

E7211/2 — Line Drawing PDF Download
