E7093/4
E7093/4
E7093/4

E7093/4

UGC DOR5977597
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$135.43 CAD - $135.43 CAD
$135.43 CAD
$135.43 CAD - $135.43 CAD
$135.43 CAD

Vendu en lots de : 1

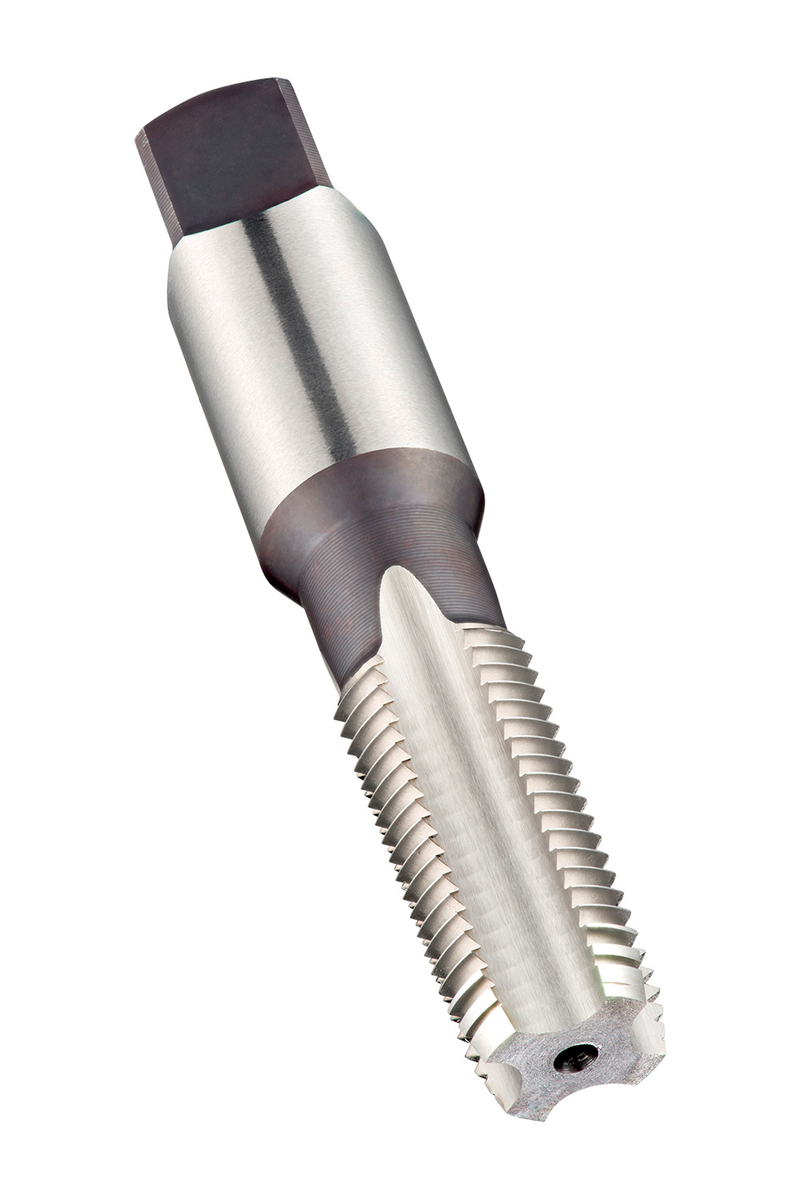

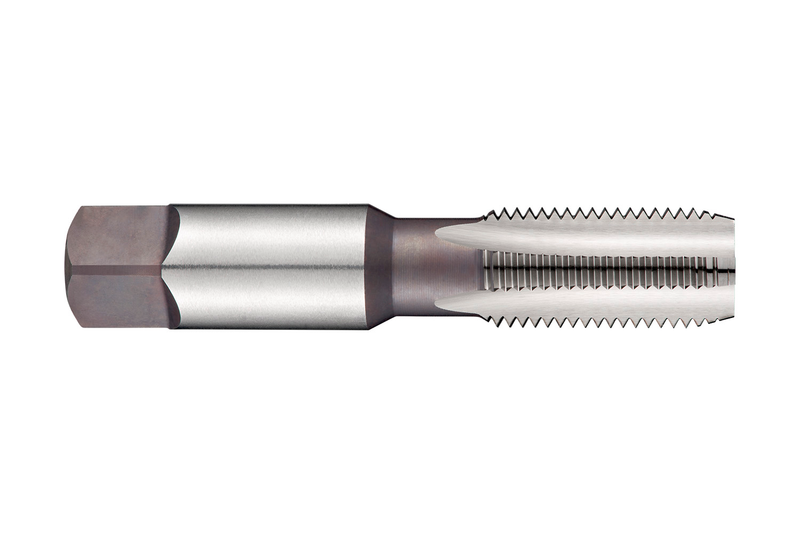

Taraud à gorge droite avec chanfrein de forme C avec entrée de 2-3xP, pour filetage National Pipe Straight pour conduites de carburant (Dryseal) NPSF 3/4" avec 14 TPI et classe de tolérance normale, dimensions selon la norme ~ANSI B94.9 avec queue de 23,0 mm et carré d'entraînement de 17,2 mm, HSS finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1.5xD dans les aciers de décolletage, aciers au carbone non alliés et alliés, ainsi que le cuivre et les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E7093/4
GradeLumineux
Product Number5977597
Product FamilyE709
Dimensions
Overall Length — in (OAL)4.1339"
Overall Length — mm (OAL)105.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.9055"
Connection Dia. — mm (DCON)23.0 mm
Number of Flutes (NOF)5
Threading
Thread Diameter Size (TDZ)3/4
Thread Diameter — in (TD)1.05"
Thread Diameter — mm (TD)26.67 mm
Thread Form (THFT)NPSF - Tuyau de carburant droit national
Threads per Inch (TPI)14.0
Tool Information
ShankQueue cylindrique avec Carré
Direction of ToolD'accord
Standard~ANSI B94.9
Reference Numbers
EDP Number99810
EAN7320760099810
File Type Download

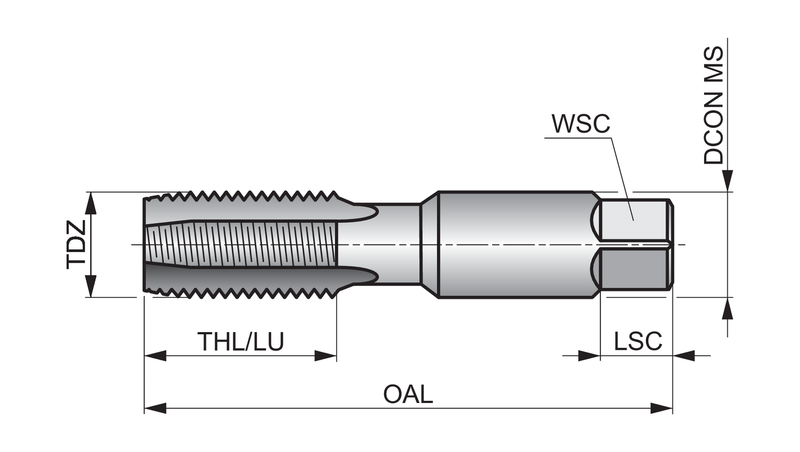

E7093/4 — Line Drawing PDF Download
