E7093/8
E7093/8
E7093/8

E7093/8

UGC DOR5977600
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$61.87 CAD - $61.87 CAD
$61.87 CAD
$61.87 CAD - $61.87 CAD
$61.87 CAD

Vendu en lots de : 1

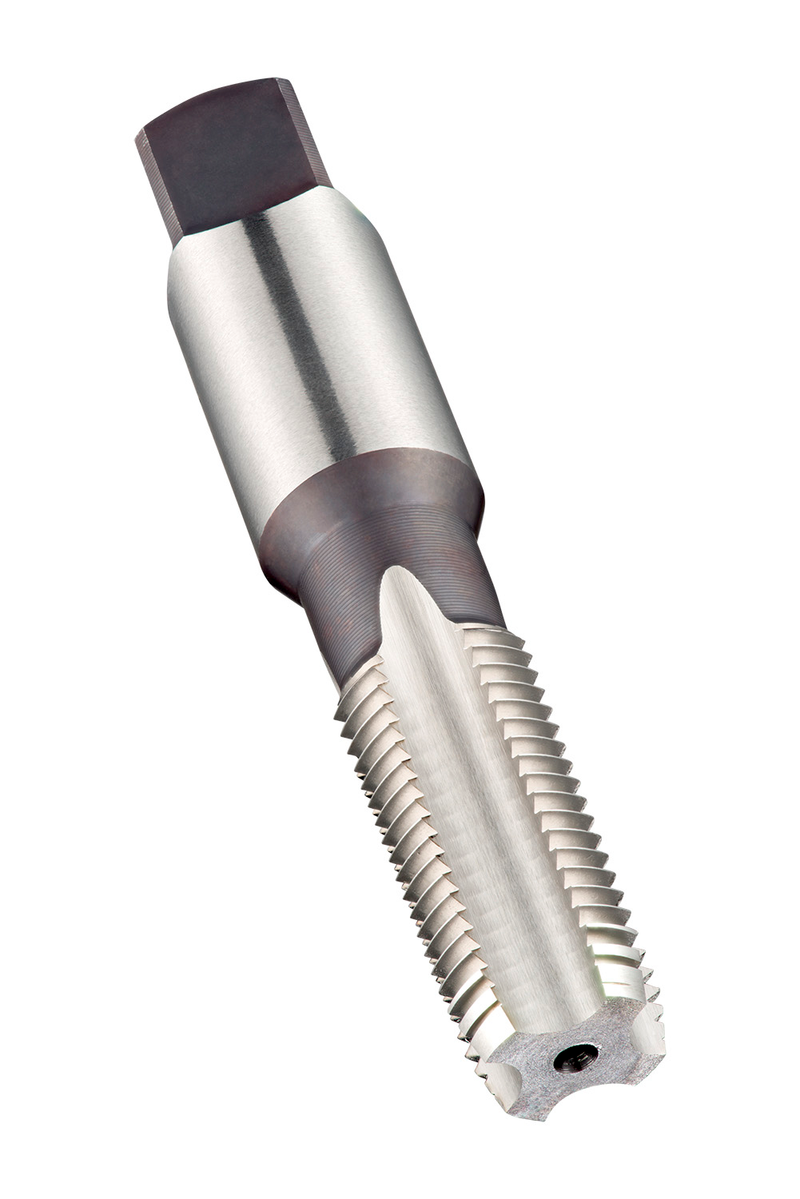

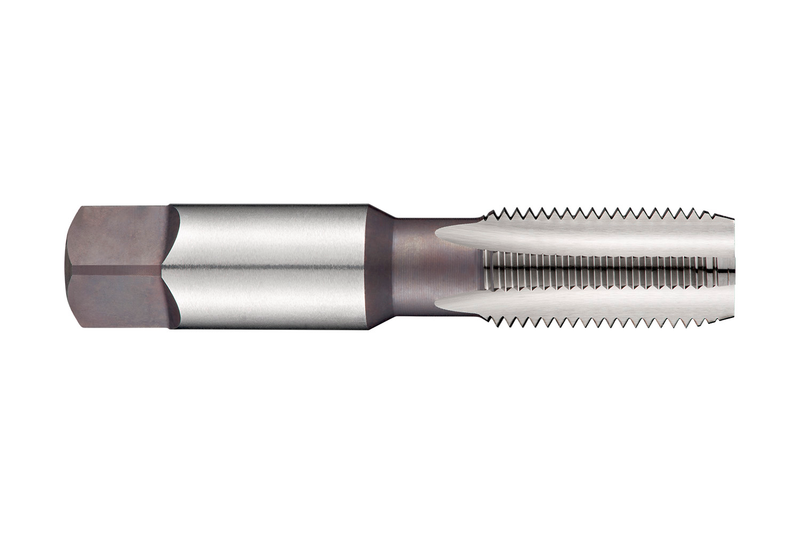

Taraud droit forme C avec entrée 2-3xP, pour filetage de tuyauterie droit (Dryseal) NPSF 3/8" avec 18 filets par pouce et classe de tolérance normale, dimensions selon la norme ~ANSI B94.9, avec queue de 17,8 mm et carré d'entraînement de 13,5 mm, en acier rapide avec finition brillante pour le filetage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage, les aciers au carbone, les aciers alliés et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E7093/8
GradeLumineux
Product Number5977600
Product FamilyE709

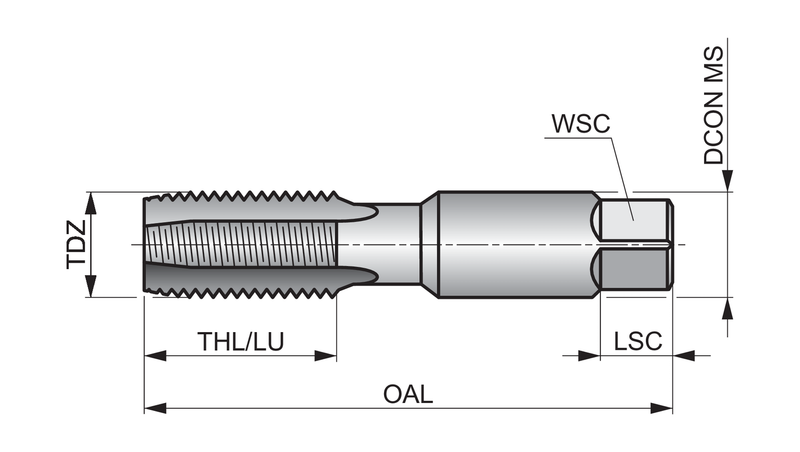

Dimensions
Overall Length — in (OAL)3.1496"
Overall Length — mm (OAL)80.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)1.063"
Usable Length — mm (LU)27.0 mm
Connection Dia. — in (DCON)0.7008"
Connection Dia. — mm (DCON)17.8 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)3/8
Thread Diameter — in (TD)0.6752"
Thread Diameter — mm (TD)17.15 mm
Thread Form (THFT)NPSF - Tuyau de carburant droit national
Threads per Inch (TPI)18.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
Standard~ANSI B94.9
Reference Numbers
EDP Number99827
EAN7320760099827
File Type Download
E7093/8 — Line Drawing PDF Download
